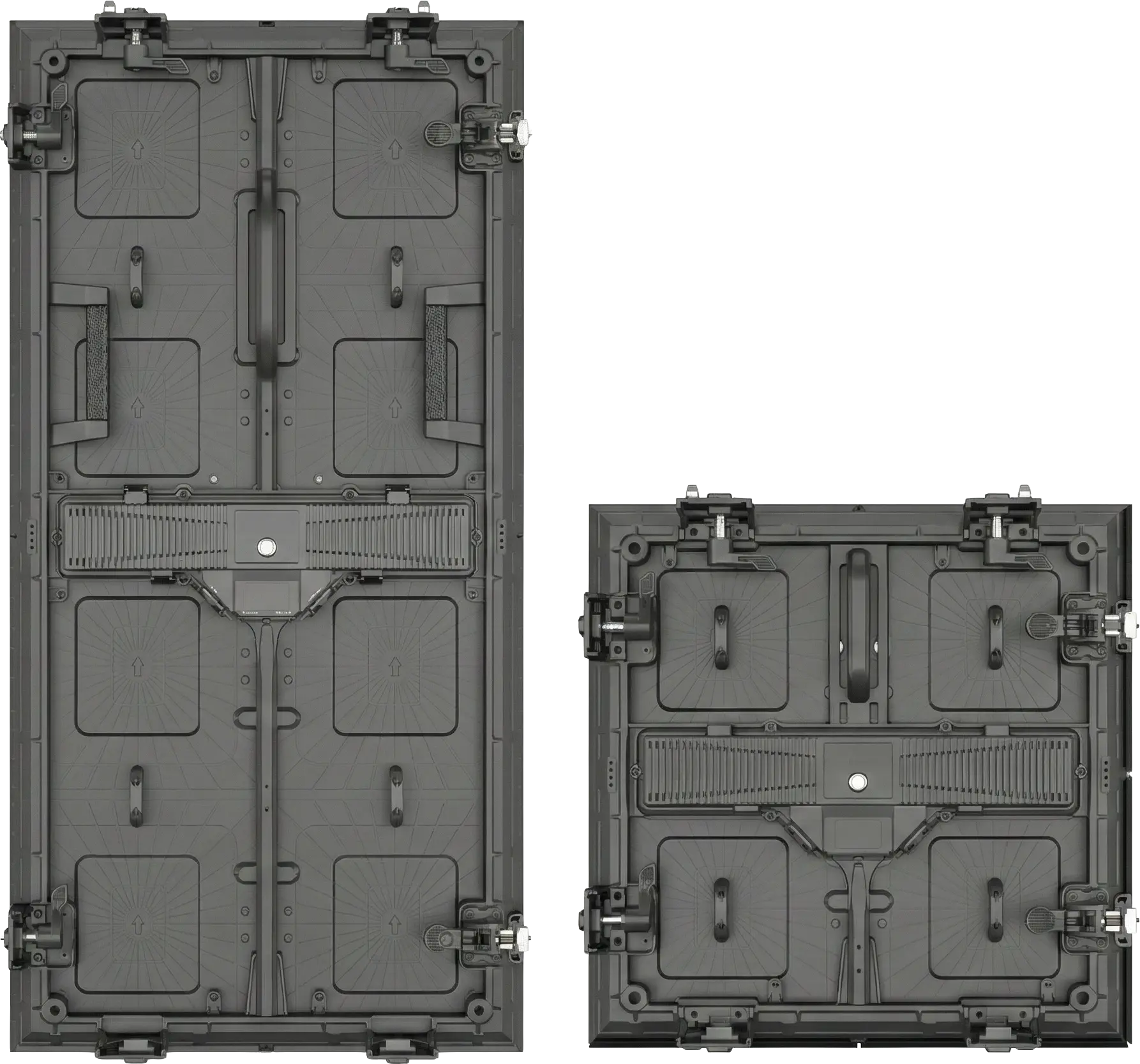

ZS III Series
- two arc-adjustable tensioning mechanismsThe cabinet uses two arc-adjustable tensioning mechanisms, making the assembly more stable and convenient.
- Supports ±10° arc-shaped module splicing
- Support 90° splicing
Features
curved
Quick Installation
90°

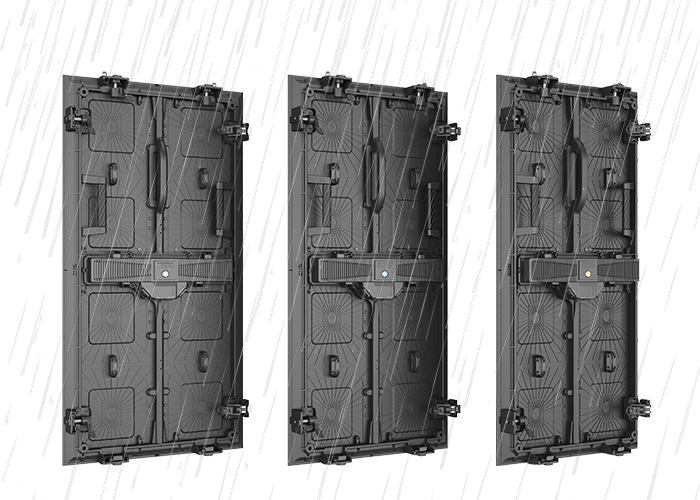

Waterproof
Why Choose Westwood
Ultra HD Clarity
Crisp visuals with vibrant detail
Energy Efficient Design
Optimized performance with low power
Protection
Durable build for long-lasting safety
Smart Connectivity
Seamless control with modern linking
Eye Comfort Technology
Reduced strain for effortless viewing
Protection
Reliable shielding in all conditions
Technical Parameter
| Model No. | ZS III 3.91 | ZM III 3.91 | ZS III 4.81 | ZM III 4.81 | ZS III 6.94 | ZM III 6.94 |
|---|---|---|---|---|---|---|
| Pixel Pitch | 3.91mm | 4.81mm | 6.94mm | |||
| LED Type | SMD1921 | |||||
| Pixel Density | 65536pixel/m² | 43264pixel/m² | 20736pixel/m² | |||
| Brightness | 3500-4500nits | |||||
| Color Temperature | 6500-9500K | |||||
| Scan Rate | 1/16 | 1/13 | 1/6 | |||
| Panel Dimension (W*H*D) | 500mm*1000mm*68mm 19.7”X39.4”X2.67” |
500mm*500mm*68mm 19.7”X19.7”X2.67” |
500mm*1000mm*68mm 19.7”X39.4”X2.67” |
500mm*500mm*68mm 19.7”X19.7”X2.67” |
500mm*1000mm*68mm 19.7”X39.4”X2.67” |
500mm*500mm*68mm 19.7”X19.7”X2.67” |
| Panel Resolution | 128*256pixel | 128*128pixel | 104*208pixel | 104*104pixel | 72*144pixel | 72*72pixel |
| Panel Weight | 10.5KG±10% (Magnesiun alloy) |
6.5KG±10% (Magnesiun alloy) |
9.4KG±10% (Magnesiun alloy) |
6.0KG±10% (Magnesiun alloy) |
8.6KG±10% (Magnesiun alloy) |
5.2KG±10% (Magnesiun alloy) |
| Cabinet Material | Die-Casting Cabinet | |||||
| Max Power Consumption | ≤720w/m² | |||||
| Ave Power Consumption | ≤360w/m² | |||||
| Viewing Angle | H：140° V：120° | |||||
| Refresh Rate | 3840Hz/7680Hz | |||||
| Gray Scale | 14-16bit | |||||
| Working Voltage (Wide) | AC100-240V～ 50-60Hz | |||||
| Working Voltage (Narrow) | AC200-240V～ 50-60Hz | |||||
| IP Rating | Front IP65,Rear IP54 | |||||
| Curve | Optional | |||||
| Max Stacking / Hanging | 10M | |||||
| Serviceability | Front/Rear | |||||
| Lifetime | 50000h | |||||
| Operating Temp / Humidity | -20℃～+45℃：10%-90%RH | |||||
| Storage Temp / Humidity | -40℃～+60℃：10%-60%RH | |||||
| Processing Platform | Novastar/Colorlight /Magnimage | |||||
| Model No. | ZS III 4.81 | ZM III 4.81 | ZS III 6.94 | ZM III 6.94 |
|---|---|---|---|---|
| Pixel Pitch | 4.81mm | 6.94mm | ||
| LED Type | SMD1921 | |||
| Pixel Density | 43264pixel/m² | 20736pixel/m² | ||
| Brightness | 3500-4500nits | |||
| Color Temperature | 6500-9500K | |||
| Scan Rate | 1/13 | 1/6 | ||
| Panel Dimension (W*H*D) | 500mm*1000mm*68mm/19.7”X39.4”X2.67” | 500mm*500mm*68mm/19.7”X19.7”X2.67” | 500mm*1000mm*68mm/19.7”X39.4”X2.67” | 500mm*500mm*68mm/19.7”X19.7”X2.67” |
| Panel Resolution | 104*208pixel | 104*104pixel | 72*144pixel | 72*72pixel |
| Panel Weight | 9.4KG±10%(Magnesiun alloy) | 6.0KG±10%(Magnesiun alloy) | 8.6KG±10%(Magnesiun alloy) | 5.2KG±10%(Magnesiun alloy) |
| Cabinet Material | Die-Casting Cabinet | |||
| Max Power Consumption | ≤720w/m² | |||
| Ave Power Consumption | ≤360w/m² | |||
| Viewing Angle | H：140° V：120° | |||
| Refresh Rate | 3840Hz/7680Hz | |||
| Gray Scale | 14-16bit | |||
| Working Voltage (Wide) | AC100-240V～ 50-60Hz | |||
| Working Voltage (Narrow) | AC200-240V～ 50-60Hz | |||
| IP Rating | Front IP65,Rear IP54 | |||
| Curve | Optional | |||
| Max Stacking / Hanging | 10M | |||
| Serviceability | Front/Rear | |||
| Transparent Rate | 2.40% | 2.00% | 3.4% | 2.8% |
| Lifetime | 50000h | |||
| Operating Temp / Humidity | -20℃～+45℃：10%-90%RH | |||
| Storage Temp / Humidity | -40℃～+60℃：10%-60%RH | |||
| Processing Platform | Novastar/Colorlight /Magnimage | |||
