Ultra-Slim Fine Pitch LED Panel TVB Series

Ultra-Slim Fine Pitch LED Panel TVB Series

  • Available pixel:0.7mm/0.9mm/1.2mm/1.5mm/1.8mm/2.5mm
  • 600mm*337.5mm Die-casting aluminum frame, better heat dissipa on
  • Ultra-slim, 39mm in depth
  • MiniLED , GOB , COB available , an-collision
  • Common cathode design for 30% energy-saving optional
  • Power & receiving card dual backup optional
  • EMC class B approved
  • Compact in-box adjustable connecting tabs ensure the seamless
  • Supports ±10° concave and convex installation
  • Supports horizontal and vertical installation
  • 300mm*337.5mm size optional
Download PDF View Specifications

Category:

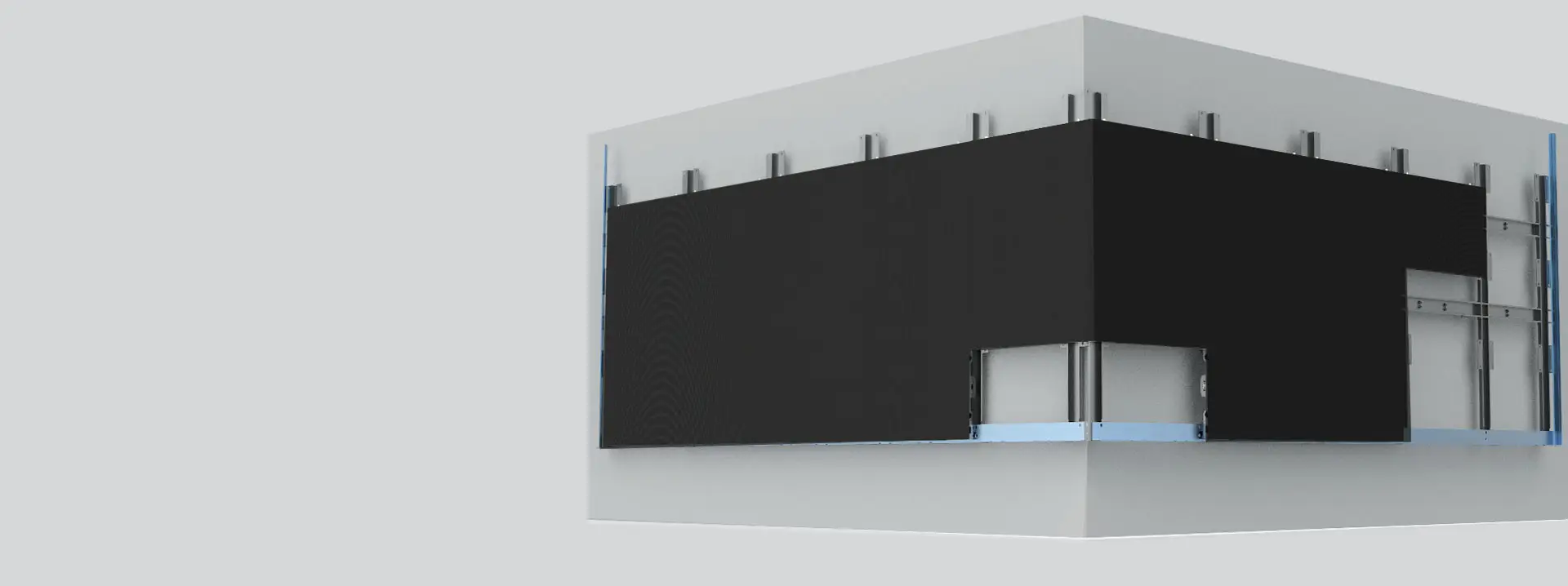

Fully wall-mounted, fully front-maintained

Ultra-slim, 39mm in depth of the cabinet

Supports ±10° concave and convex installation

Supports horizontal and vertical installation
300mm*337.5mm size optional

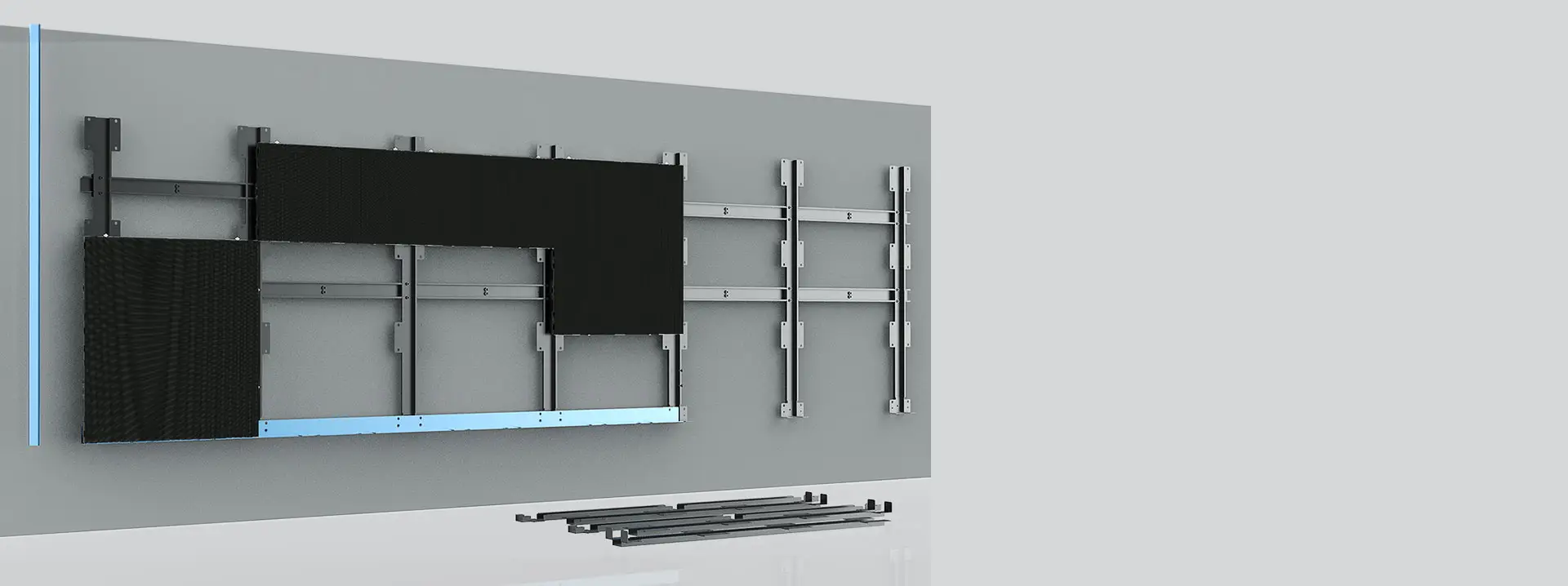

Low-cost aluminum strip fixed installation

Supports single-person freehand operation

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Model number Unit TVB0.7 TVB0.9 TVB1.2 TVB1.5 TVB1.8
Pixel pitch mm 0.7813 0.9375 1.25 1.563 1.875
Luminance nits 500 600 700 800 800
Case size mm 600*337.5*39
Box pixel matrix 768×432 640×360 480×270 384×216 320×180
Box material Die-casting Aluminum
Box weight Kg 5.6
Protection level (front/rear) IP 30/30
Maintenance mode Full front maintenance
