Ultra Series

  • Dolly System2*7 cabinets in 1 transport dolly, achieving optimal utilization of space and lowest transportation costs for outdoor LED display deployment.Two dollies can be stacked for compact storage and easy mobility outdoors.
  • Unrivalled Visual PerformanceThe UT series features high brightness, high contrast ratio, high gray scale, and high refresh rate.With superior components and ICs, creating an unrivalled visual performance for outdoor large-scale touring stage, including curved installation needs.
  • Superior Color PerformanceUT 3.75 / 5.77 / 8.33 stands out with 1921 Black LED.High contrast ratio and exceptional color performance make it ideal for outdoor LED Screen needs, even in demanding lighting conditions.

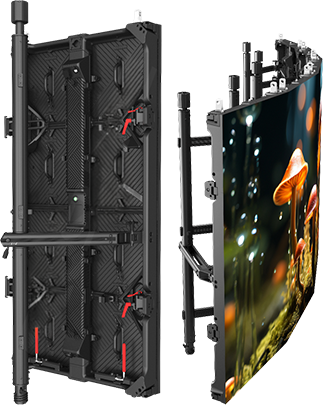

  • Innovative Top Lock DesignInnovative dual steel locks simplify installation, strengthen structural integrity, and ensure smooth panel alignment — making them especially suitable for curved outdoor waterproof LED wall setups.

Category:

Large Cabinet

Dimension(W*H*D): 600*1200*95mm
Quick Installation, High Efficiency

Time and Labor Saving

Clever Design, Smooth Use
Fast installation, Time Efficiency

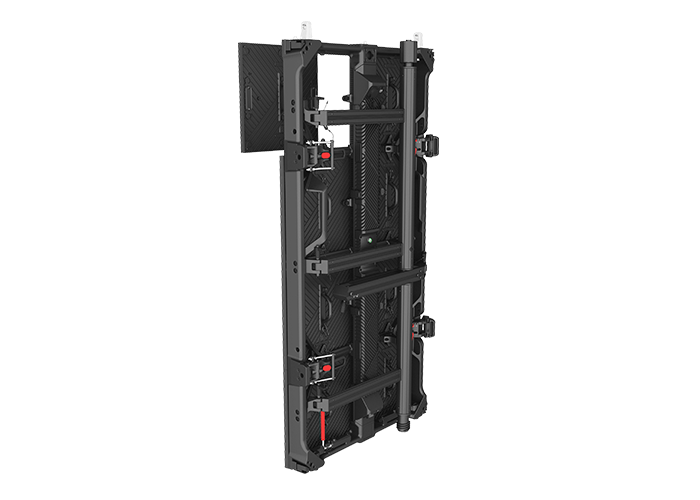

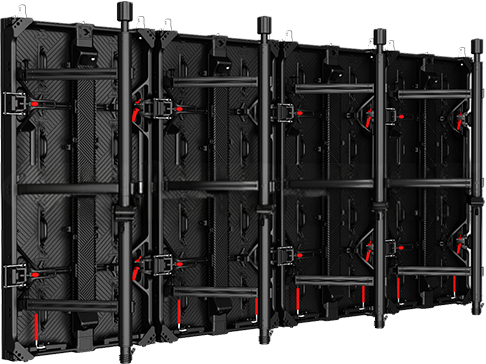

With integrated foldable wind-bracing fame, it’s perfect to quickly build a giant LED screen, both for hanging installation and stacking installation.

Quick & Convenient Maintenance

Modular Design
Universal Magnetic Modules
Fast Front Maintenance

Born for Outdoor Touring Stage

Professional large-scale stage solution
Integrated wind-bracing system and dolly system
Innovative curving capabilities
Fast and easy maintenance
Large cabinet, effortless installation efficiency

Features

Outdoor LED Display

Outdoor LED Display

Wind-bracing System

Wind-bracing System

Waterproof

Waterproof

Curved-Capable

Curved-Capable

Quick Maintenance

Quick Maintenance

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Model No. UT3 (Outdoor) UT5 (Outdoor) UT8 (Outdoor)
Pixel Pitch 3.75mm 5.77mm 8.33mm
LED Type SMD1921 (Black) SMD1921 (Black) SMD1921 (White)
Pixel Density 71111 pixel/㎡ 30044 pixel/㎡ 14400 pixel/㎡
Brightness 3500~4000 nits 3500~4000 nits 3500~4000 nits
Color Temperature 6500~9500K
Scan Rate 1/10 or 1/16 1/4 1/3
Panel Dimension 600mm*1200mm*95mm(23.6″*47.2″*3.74″)
Panel Resolution 160*320pixel 104*208pixel 72*144pixel
Panel Weight 20kg (44.09lb) ±10%
Cabinet Material Die-Casting Cabinet
Max Power Consumption ≤850w/㎡
Average Power Consumption ≤425w/㎡
Viewing Angle H:160º  V:140º
Refresh Rate 3840Hz 3840Hz 3840Hz
Gray Scale 14–16 Bit 14–16 Bit 14–16 Bit
Working Voltage AC100-240V~ 50/60Hz or AC200-240V~ 50/60Hz (two choose one)
IP Rating IP65
Max Stacking / Hanging 20m
Curve -10° ~ +10°
Lifetime 50,000 h
Operating Temp / Humidity -20℃~+45℃;10%~90%RH
Storage Temp / Humidity -40℃~+60℃;10%~60%RH
