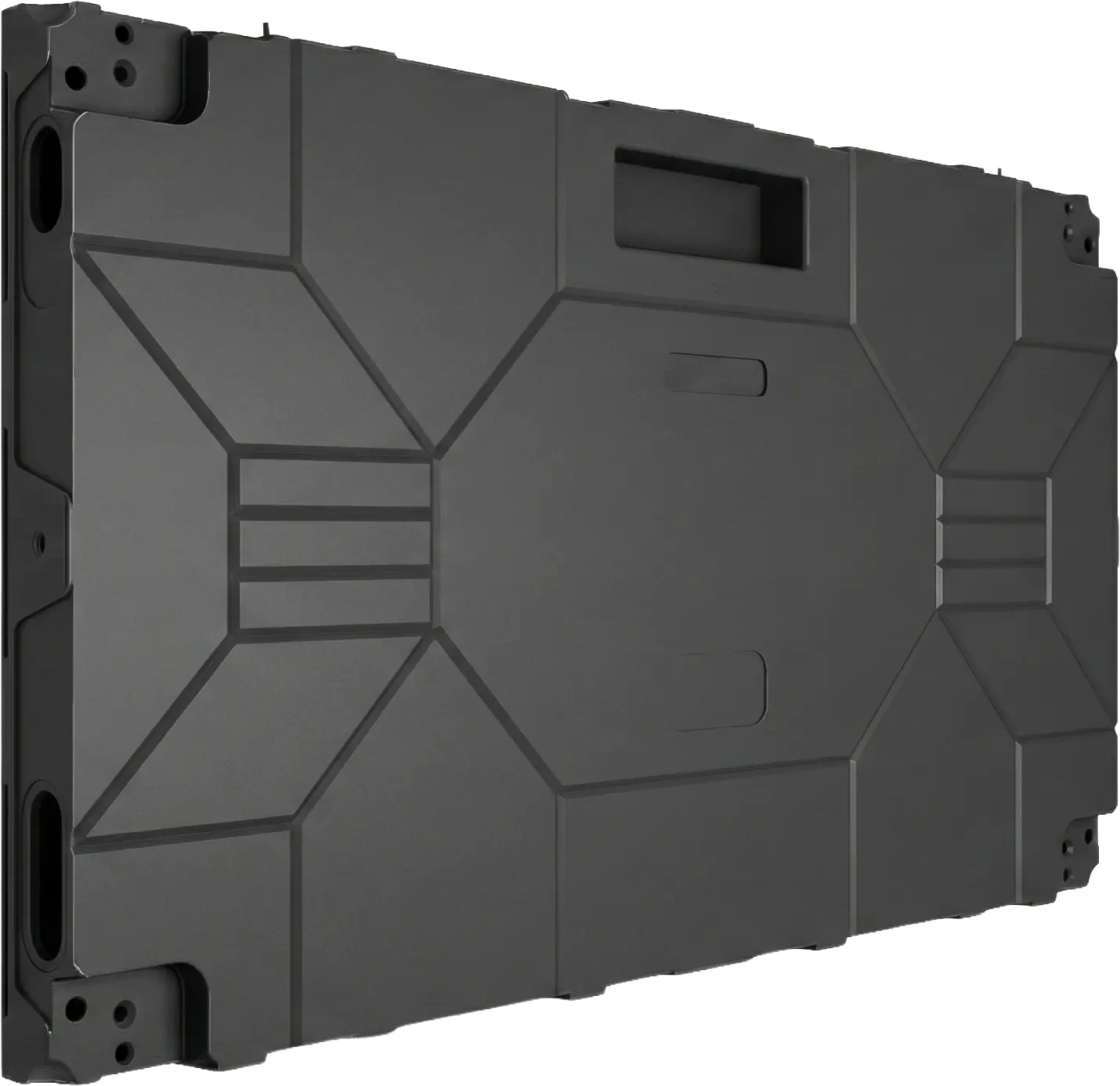

Magnetic LED module
Full front servicable
Crisp visuals with vibrant detail
Optimized performance with low power
Durable build for long-lasting safety
Seamless control with modern linking
Reduced strain for effortless viewing
Reliable shielding in all conditions
| Model No. | SL 0.93 | SL 1.25 | SL 1.56 | SL 1.87 | SL 2.50 |
| Pixel Pitch | 0.93 mm | 1.25 mm | 1.56 mm | 1.87 mm | 2.50 mm |
| LED Type | Mini 4-in-1 | SMD1010 | SMD1212 | SMD1515 | SMD2020 |
| GOB | Optional | ||||
| Pixel Density | 1137777 pixels/m² | 640000 pixels/m² | 409600 pixels/m² | 284444 pixels/m² | 160000 pixels/m² |
| Brightness | 400～600 nits | 400～600 nits | 500～700 nits | 600～800 nits | 800～1000 nits |
| Color Temperature | 2500～9500K | ||||
| Scan Rate | 1/30 | 1/30 or 1/60 | 1/32 or 1/64 | 1/30 | 1/30 |
| Panel Dimension (W*H*D) | 600 mm*337.5 mm*41 mm (23.6″*13.3″*1.6″) | ||||
| Panel Resolution | 640*360 pixels | 480*270 pixels | 384*216 pixels | 320*180 pixels | 240*135 pixels |
| Panel Weight | 5.8 kg (12.8 lb) ± 10% | ||||
| Cabinet Material | Die-casting Cabinet | ||||
| Max Power Consumption | ≦500w/m² | ||||
| Ave Power Consumption | ≤250W/m² | ||||
| Viewing Angle | H: 160° V: 140° | ||||
| Refresh Rate | 7680/3840 Hz | ||||
| Gray Scale | 13-16 bit | ||||
| Working Voltage （Wide Voltage） |
AC100-240V～ 50-60Hz | ||||
| Working Voltage （Narrow Voltage） |
AC200-240V～ 50-60Hz | ||||
| IP Rating | IP30 | ||||
| Serviceability | Front | ||||
| Curve | Optional | ||||
| Lifetime | 50,000 h | ||||
| Operating Temp/Humidity | -20℃～+45℃; 10%～60% RH | ||||
| Storage Temp/Humidity | -40℃～+ 60℃; 10%～60% RH | ||||
| Processing platform | Novastar/Colorlight/Magnimage | ||||
| Certifications | CE-EMC/FCC/MET/ROHS | ||||
