RB Series—Outdoor Transparent Rental LED Panel

RB Series---Outdoor Transparent Rental LED Panel
RB Series---Outdoor Transparent Rental LED Panel - Image 2
RB Series---Outdoor Transparent Rental LED Panel - Image 3
RB Series---Outdoor Transparent Rental LED Panel - Image 4
RB Series---Outdoor Transparent Rental LED Panel - Image 5

RB Series—Outdoor Transparent Rental LED Panel

  • Available pixel:3.9-7.8mm/7.8mm/8.3mm/10mm
  • Ultra light and slim large panel for stage
  • 1000mm*1000mm,minumum weight 16.5KG/m²
  • Transparency up to 62%
  • IP65 both for front and rear
  • Available for -10°~+10° concave & convex & corner & angle conbination
Download PDF View Specifications

Category:

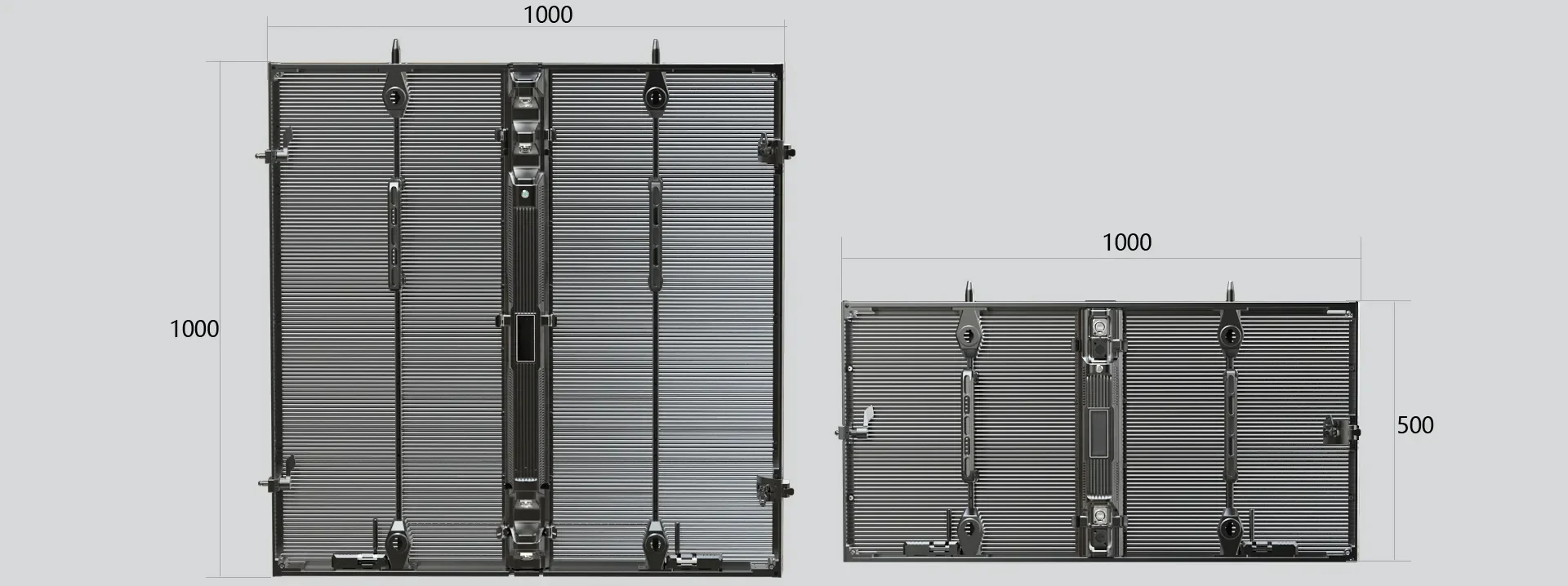

Cabinet size ：1000mm*1000mm/1000mm*500 mm optional

Transpaerent modules & solid module optional

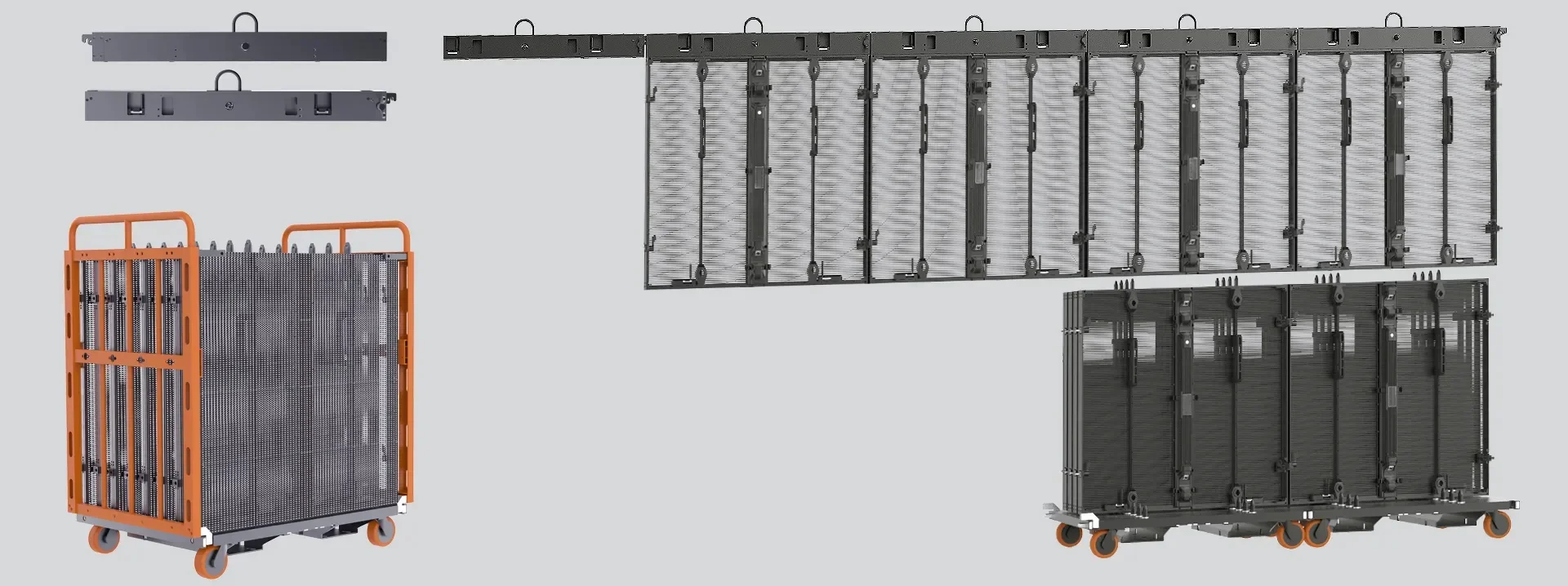

Haning bar and dolly optional

Maximum hanging 15 panels

Available for concave & convex & corner & angle conbination

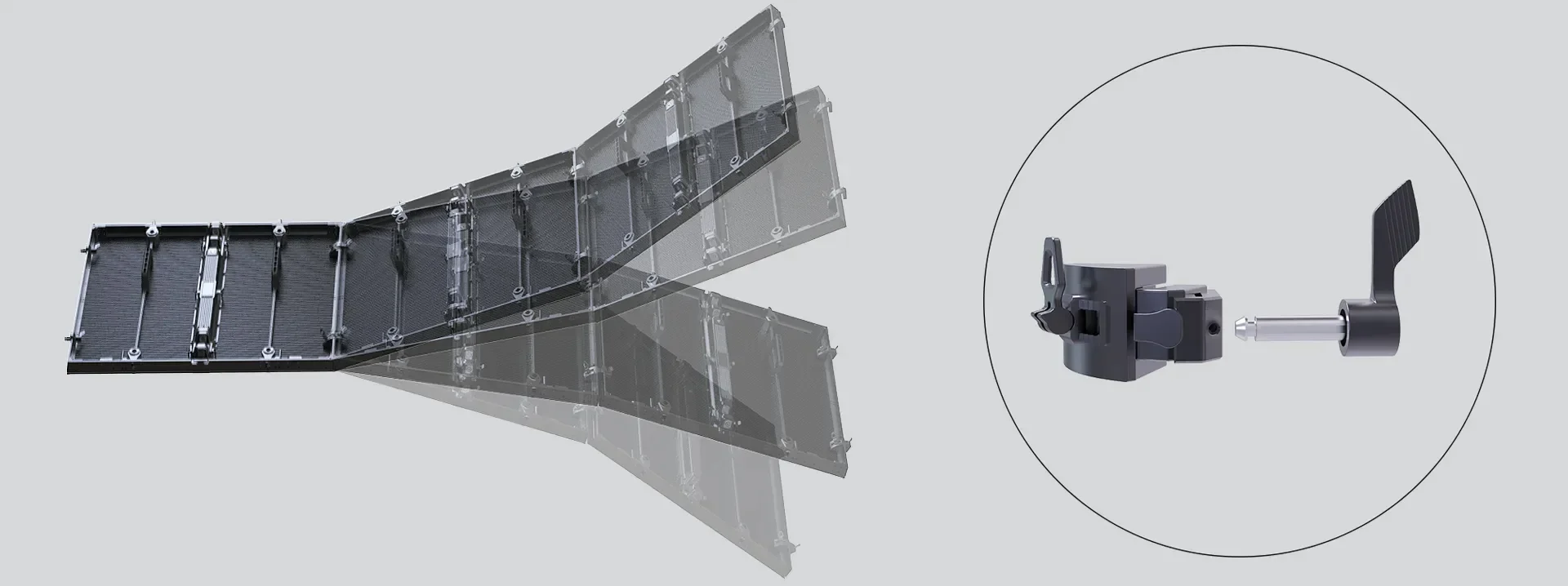

Five curve locks optional: 0°, ±5°, ±10°

Regular fram and windproof large back fram optional

90° right angle splicing, 4-sided column cplicing

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Parameter Unit RB3.9-7.8 RB7.8 RB8.3 RB10
Pixel pitch W:3.9 H:7.8 7.8 8.3 10.4
Brightness nits 4000 5000 5000 5000
Panel size mm 1000*1000*80
Pixel matrix per panel 256×128 128×128 120×120 96×96
Panel material Aluminum
Panel weight Kg 16.5
Ingress protection (front/rear) IP 65/54
Maintenance Front access/rear access
