RB-B Series

RB-B Series

  • Multiple Cabinets for OptionRB-B series offers multiple cabinet options to meet complex creative shapes and enhance scene adaptation flexibility.
  • Cubic Column/Cube/Vertical SplicingRB-B supports four-sided cutting edge.
    RB PLUS-B supports two-side cutting edge (left and right).
  • Curved ScreenRB-B Series available splicing for curved shape, easily radian adjustment, efficiently installation.
  • Splice with 90° Corner FilletRB-B Series can splice with 90° corner fillet screen MR Series, creating a seamless and smooth round corner visual experience.
  • Splice with Flexible ScreenRB-B Series indoor available for splicing with flexible screen, offering versatile designs to meet various creative needs.
View Specifications

Categories: ,

Ultra Thin & LightWeight Cabinet

Dual Top/Side Locks Design

Dual top/side locks for each cabinet.
Steel core with spring locking system.
Efficient and quick installation
Seamless splicing

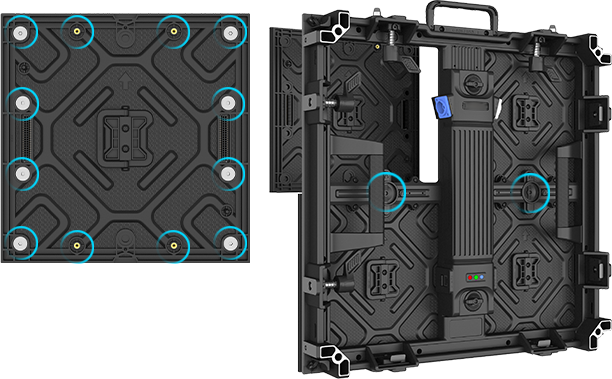

Magnetic Modules

Magnetic Modules+Rotary Knob Design
Quick and convenient front maintenance.
Prevent misalignment during transportation.
Avoid the risk of falling from heights.

45° Beveled Cabinet (Optional)

Available for 45° beveled cabinet, supports cubic column/cube/vertical splicing etc.

Features

Utral-Ligh tweight

Utral-Ligh tweight

Easy Maintenance

Easy Maintenance

Curving Options

Curving Options

"L" Shape

"L" Shape

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Model No. RB-B1.9 RB-B/RB PLUS-B2.9 RB-B/RB PLUS-B2.9 RB-B/RB PLUS-B3.9
Pixel Pitch 1.9mm 2.6mm 2.9mm 3.9mm
LED Type 2 in 1 SMD1515 SMD2020 SMD2020
Packaging Technology SMD SMD SMD SMD
Pixel Density 262144 pixel/㎡ 147456 pixel/㎡ 112896 pixel/㎡ 65536 pixel/㎡

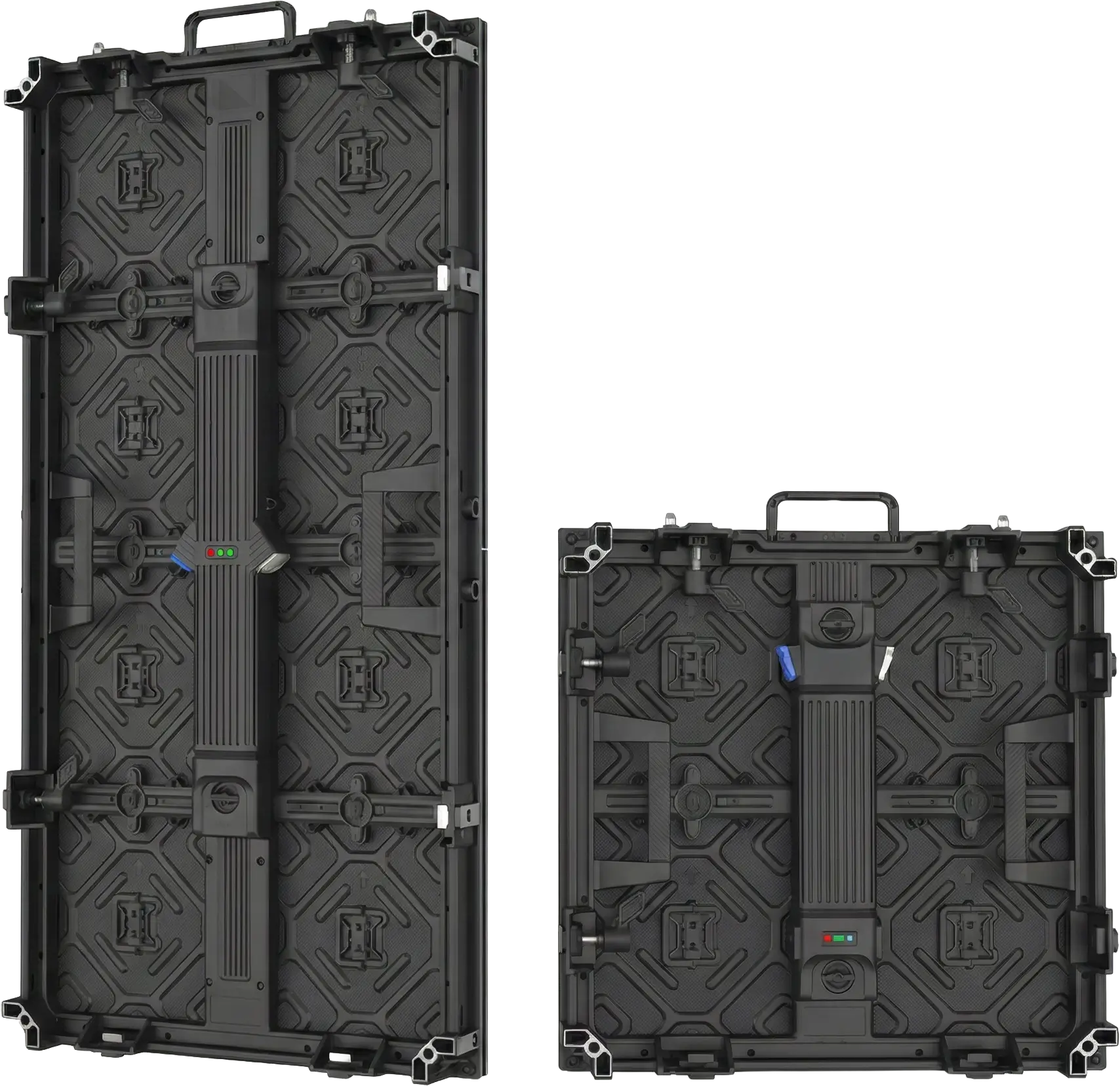

Panel Dimension RB-B:500mm*500mm*76mm RB Plus-B:500mm*1000mm*76mm
RB-B:500mm*500mm*76mm		 RB Plus-B:500mm*1000mm*76mm
RB-B:500mm*500mm*76mm		 RB Plus-B:500mm*1000mm*76mm
RB-B:500mm*500mm*76mm
Panel Resolution RB-B:256*256 pixel RB Plus-B:192*384 pixel
RB-B:192*192 pixel		 RB Plus-B:168*336 pixel
RB-B:168*168 pixel		 RB Plus-B:128*256 pixel
RB-B:128*128 pixel
Scan Rate 1/32 1/24 1/21 or 1/28 1/16
Brightness 600-800nits 600-800nits 600-800nits 600-800nits
Refresh Rate 3840Hz/7680Hz
Gray Scale 14-16Bit
Color Temperature 6500-9500K
Panel Weight RB-B:7.2kg±10%  RB Plus-B:12.2kg±10%
Dual Redundancy:8kg±10%
Panel Material Die-Casting Cabinet
Max. Power Consumption ≤580w/㎡
Ave. Power Consumption ≤290w/㎡
Viewing Angle H:160°/V:140°
Working Voltage AC200-240V~50/60Hz or AC100-240V~50/60Hz
IP Rating IP30
Maintenance Front/Rear
Curve Curved Cabinet/45° Beveled Cabinet (±10° curved lock): -10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°
90°lock/connecting plate: 90°
Max. Stacking/Hanging Height 10m
Operating Temp/Humidity -20℃~+45℃；10%~60%RH
Storage Temp/Humidity -40℃~+60℃；10%~60%RH
Control System Novastar/Magnimage/Colorlight
Product Certification MET/CE/EMC
