PF Series–Indoor front and rear maintenance fixed LED display. P2.6 to P6.25 Indoor.

  • Available pixel: 2.6 mm/2.9 mm/3.9 mm/4.8 mm/6.25 mm
  • Front and rear maintenance
  • Module size: 250 mm*250 mm
  • Standalone indoor retail store solutions and indoor fixed installations. Floor-standing and wall-mounted.

Category:

The cabinet size can be adjusted freely according to the module size

Module size: 250 x 250 mm

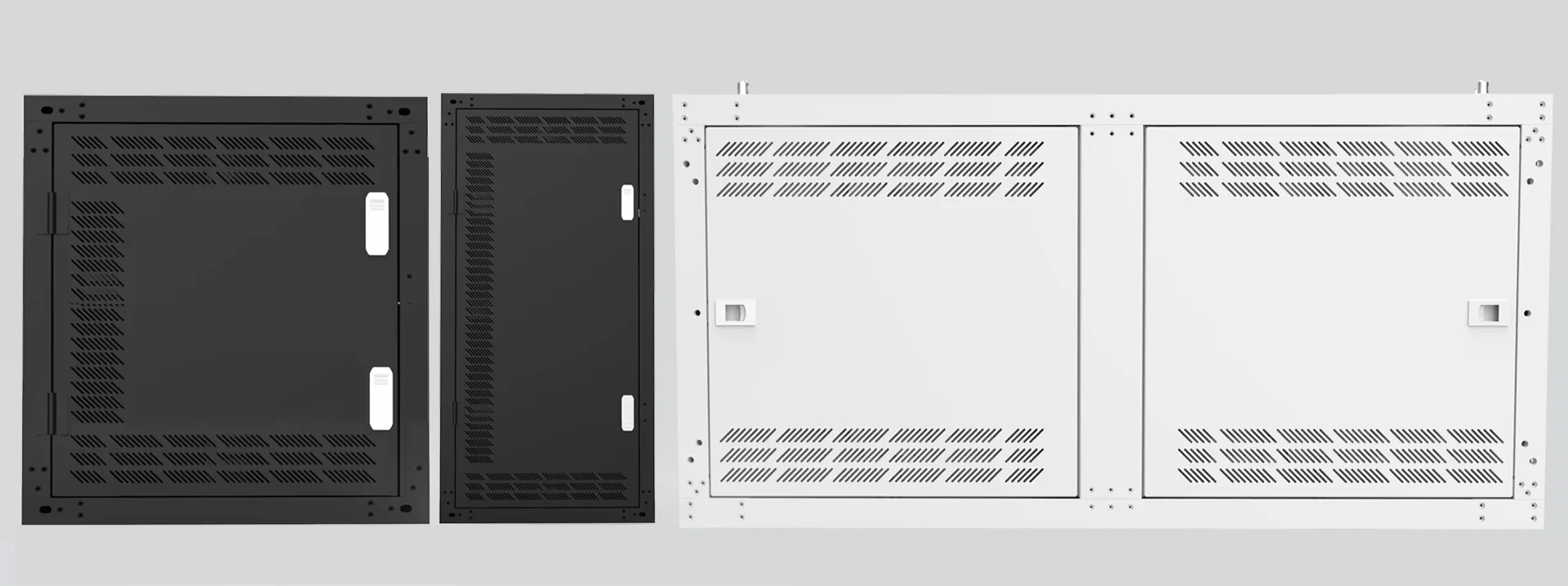

The color of the cabinet can be customized

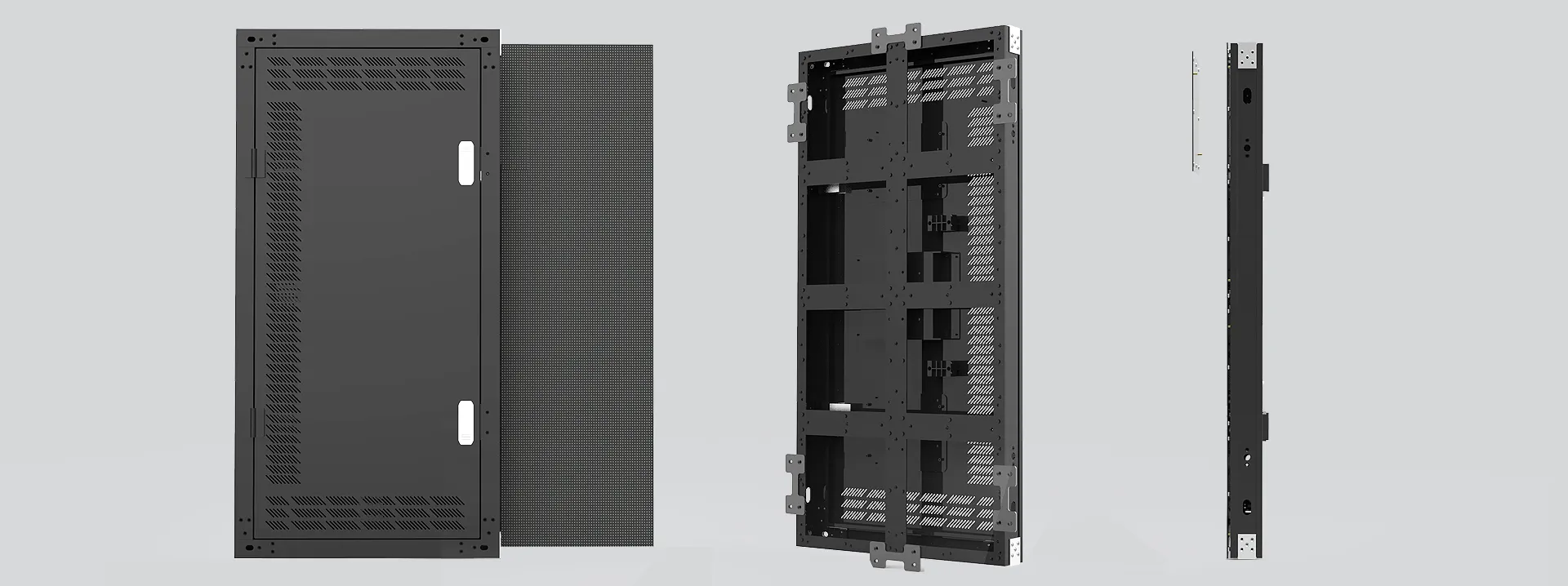

Fully front & rear maintenance

Indoor multi-scene fixed installation

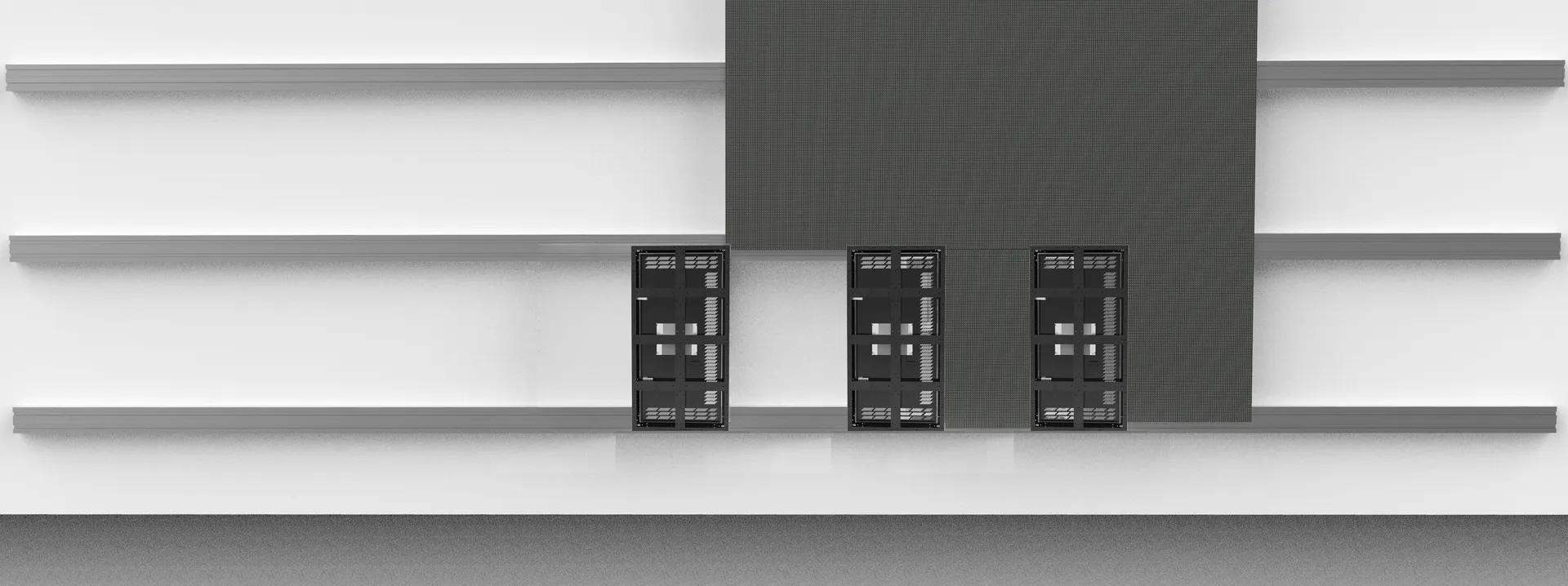

Conventional indoor fixed installation, support wall installation

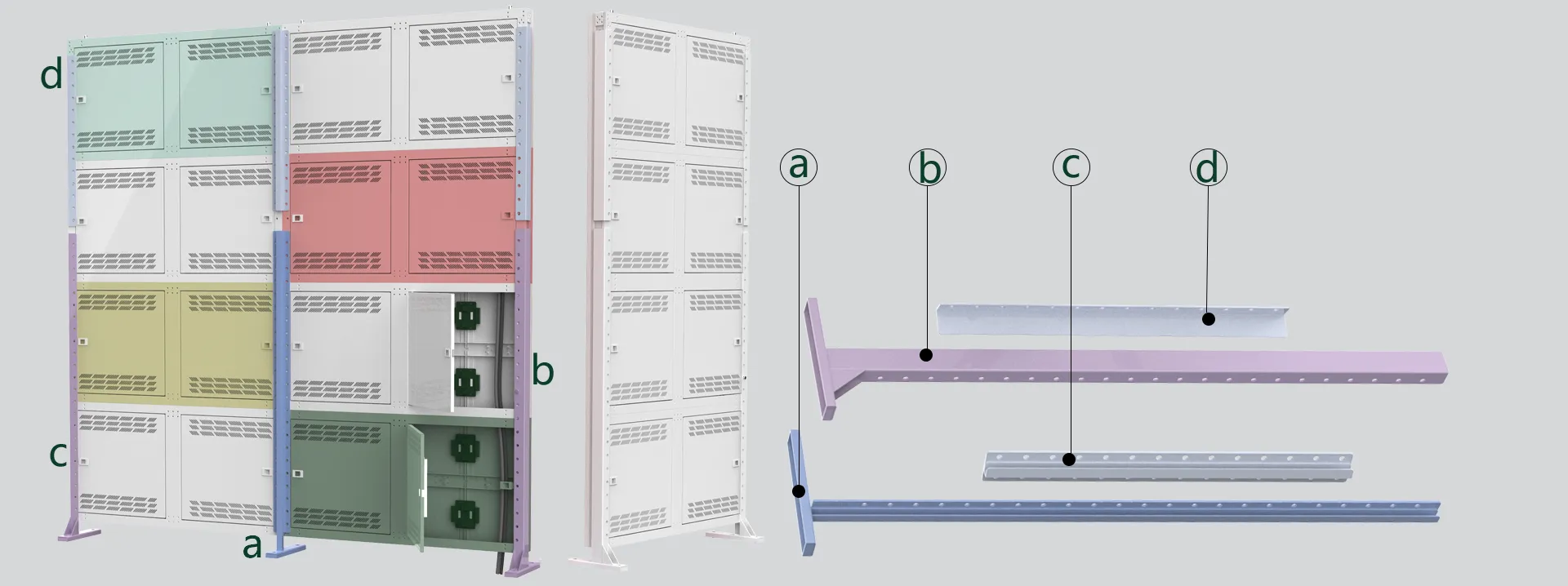

Stand-alone floor support is ideal for retail applications.

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Parameter Unit PF2 PF3 PF4 PF6
Pixel pitch mm 2.976 3.906 4.807 6.25
Brightness nits 1000
Pixel configuration R/G/B SMD 3 in 1
Colour temperature deg.K 6500
Viewing angle – Horizontal (50% brightness) deg. 140 (+70/-70)
Viewing angle – Vertical (50% brightness) deg. 140 (+70/-70)
Recommended minimum viewing distance m 2.9 3.9 4.8 6.2
Panel width mm 500
Panel height mm 1000
Panel depth mm 70
Panel area 0.5
Panel material Aluminum
Panel weight Kg 14
Ingress protection (front/back) IP 30/30
Pixel matrix per panel 168×336 128×256 104×208 80×160
Brightness control 255
Digital processing bit 13
Frame rate Hertz 50/60
Display refresh rate Hertz 1920
Input voltage VAC 100 ~ 240
Input power frequency Hertz 50 ~ 60
Input power (Max.) W/m² 520 560 550 500
Input power (Avg.) W/m² 182 196 192 175
Operating temperature range deg.C -10 ~ +45
Lifetime (50% brightness) Hours 100,000
