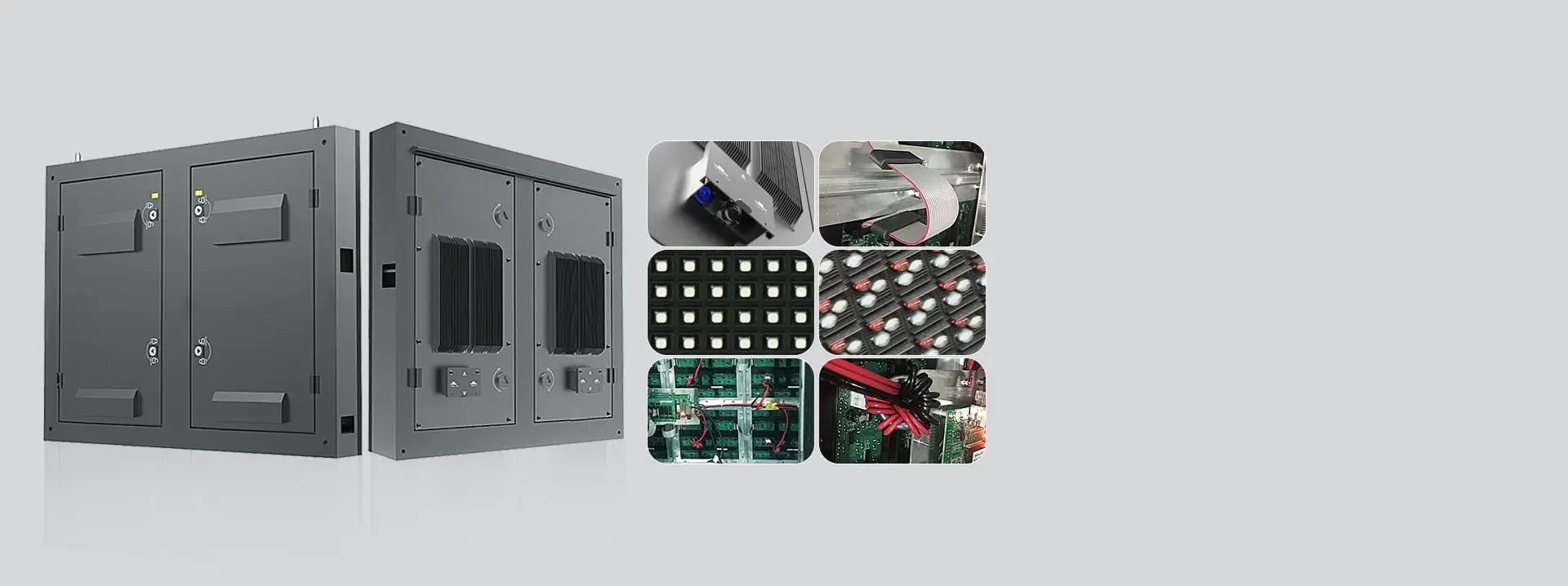

Super robust traditional cabinet, IP65, ideal for medium to large stadium/sports and retail applications. Customizable for temp/perm court/field and pitchside applications.

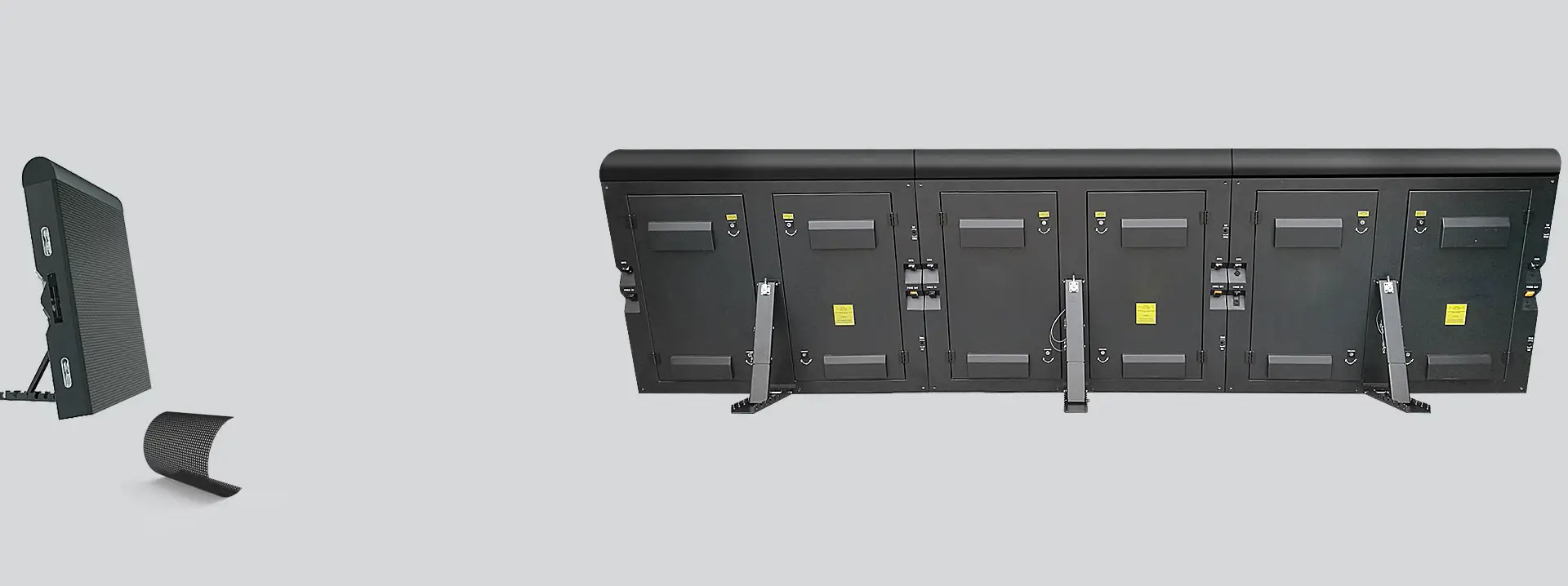

Pitch/court/fixed/temporary field-side customization, with padding for talent safety.

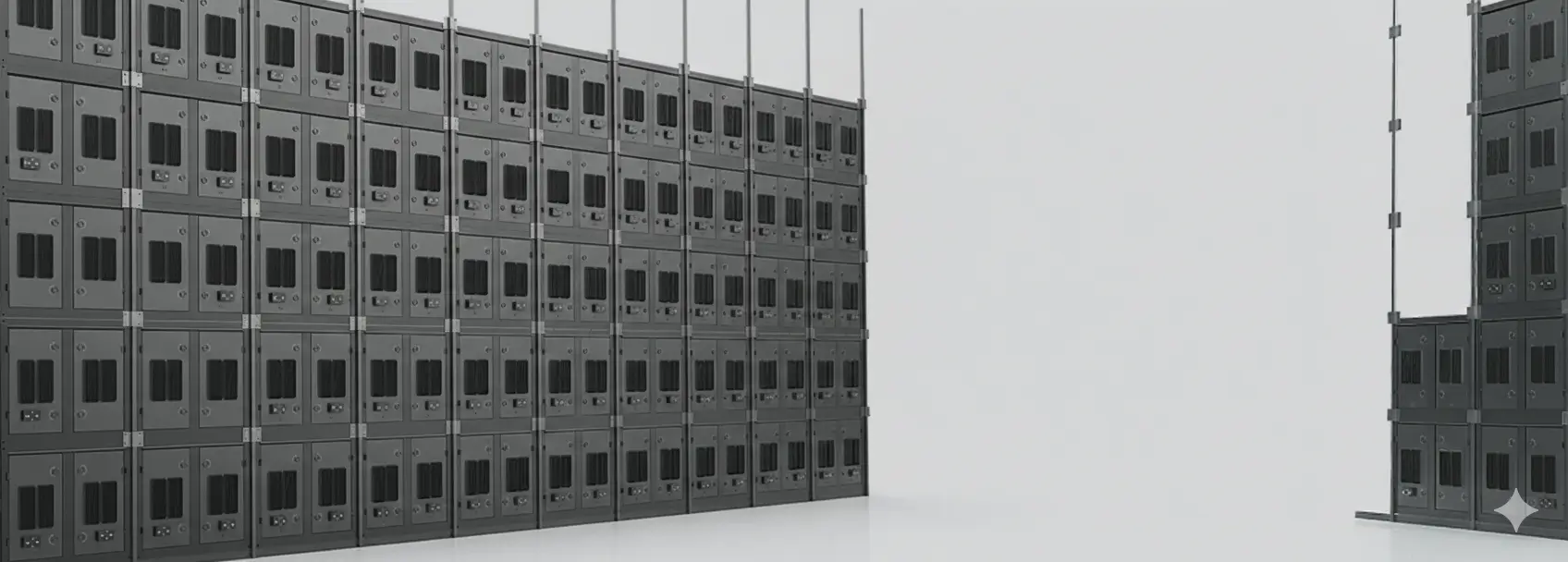

High resolution and refresh rate for future-proof large-scale installations.

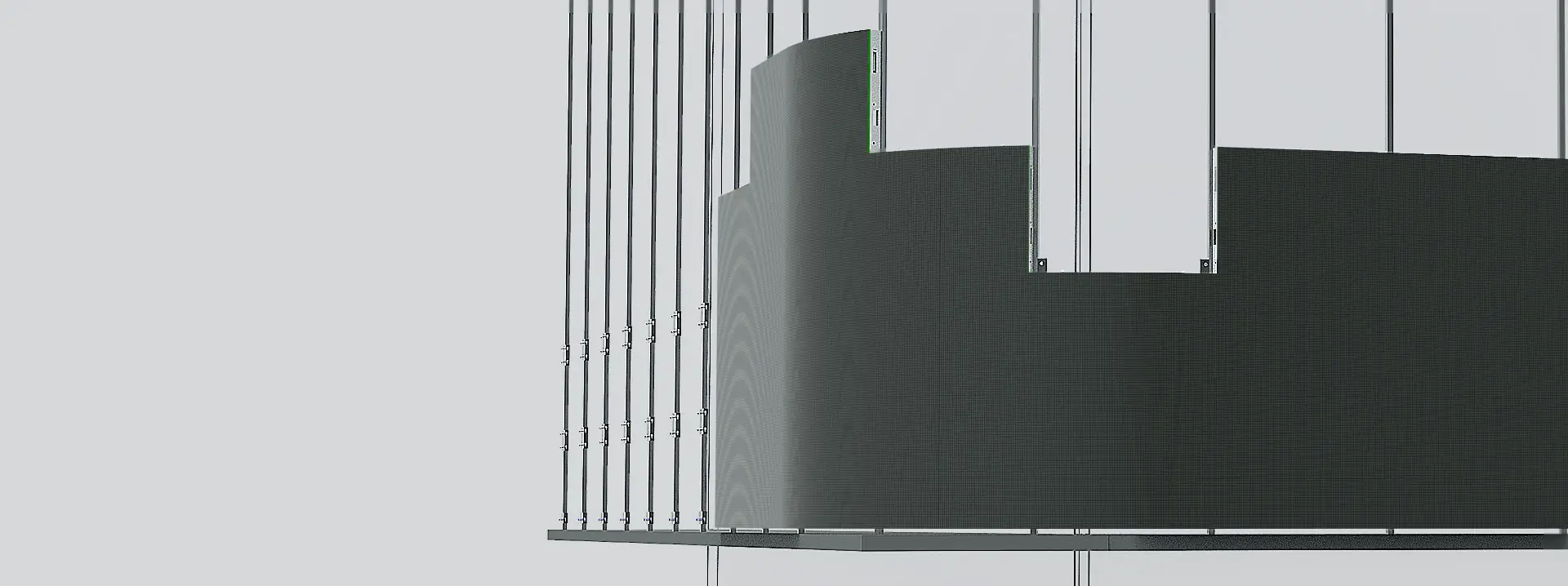

Seamless integrated curved panels.
Crisp visuals with vibrant detail
Optimized performance with low power
Durable build for long-lasting safety
Seamless control with modern linking
Reduced strain for effortless viewing
Reliable shielding in all conditions
| Parameter | Unit | Q3.1 | Q3.9 | Q4.8 | Q5 | Q5.5 | Q6 | Q6.2 | Q7.8 | Q8 | Q10 | Q12 |
| Pixel pitch | mm | 3.125 | 3.906 | 4.807 | 5 | 5.556 | 6 | 6.25 | 7.813 | 8 | 10 | 12 |
| Brightness | nits | 5000 | ||||||||||
| Panel size | mm | 1000*1000*162 | 750*750*160 | 750*750*160 | 640*480*160 | 800*900*160 | 768*576*165 | 800*900*160 | 1000*1000*165 | 1024*1024*160 | 960*960*160 | 1152*960*165 |
| Pixel matrix per panel | 320×320 | 192×192 | 156×156 | 128×96 | 144×162 | 128×96 | 128×144 | 128×128 | 128×128 | 96×96 | 96×80 | |
| Panel material | Steel/Aluminum | |||||||||||
| Panel weight | Kg | 55/45 | 30/25 | 30/25 | 21/16 | 40/35 | 27/23 | 40/35 | 60/55 | 65/55 | 55/45 | 62/53 |
| Ingress protection (front/rear) | IP | 65/43 | ||||||||||
| Maintenance | Rear access | Front access/rear access | Rear access | |||||||||
