Outdoor Media Facade LED Strip B Series

Outdoor Media Facade LED Strip B Series
Outdoor Media Facade LED Strip B Series - Image 2
Outdoor Media Facade LED Strip B Series - Image 3
Outdoor Media Facade LED Strip B Series - Image 4
Outdoor Media Facade LED Strip B Series - Image 5
Outdoor Media Facade LED Strip B Series - Image 6
Outdoor Media Facade LED Strip B Series - Image 7

Outdoor Media Facade LED Strip B Series

  • Transparancy screen
  • Ultra-light weight aluminum strip
  • Fast buckle for convenient installation
  • Strong water-proof
  • Customized strip length
  • Flexible installation
  • High refresh rate: 5000Hz
Download PDF View Specifications

Category:

Cabinet Version:

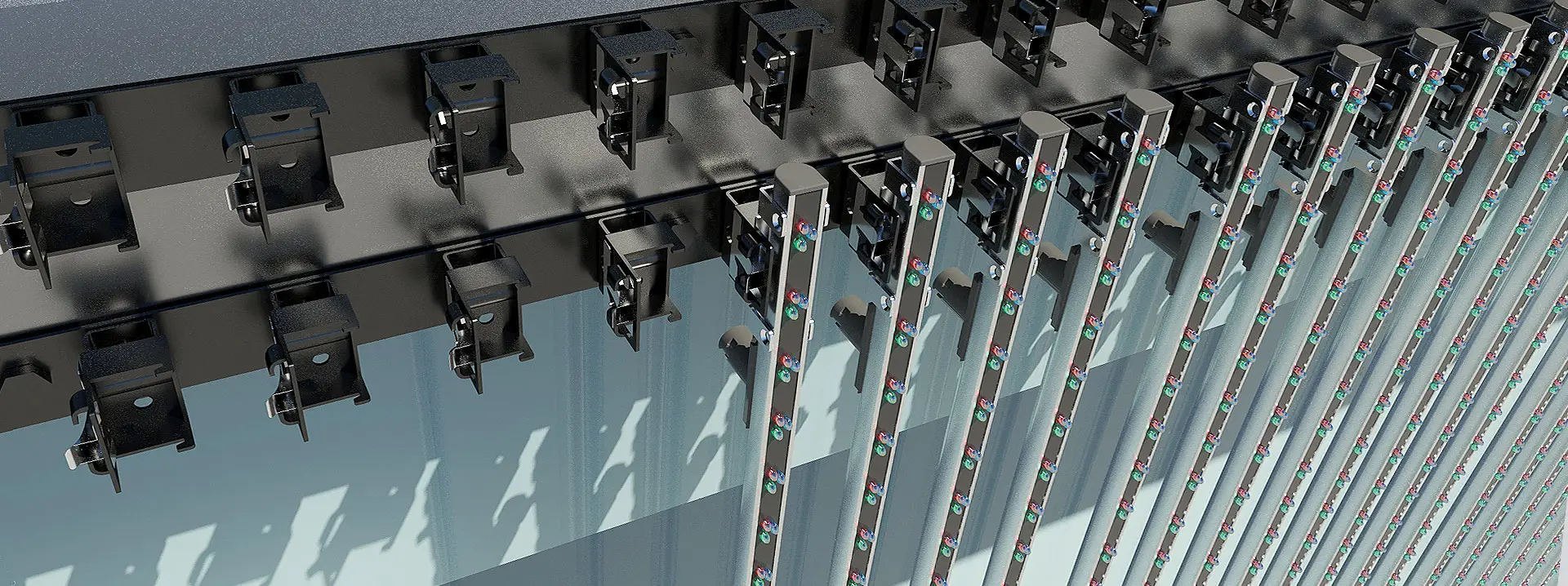

Strips could be fitted into a cabinet frame, very convenient to install.

Creative Design:

The strips could be creatively installed by varioty design ideas.

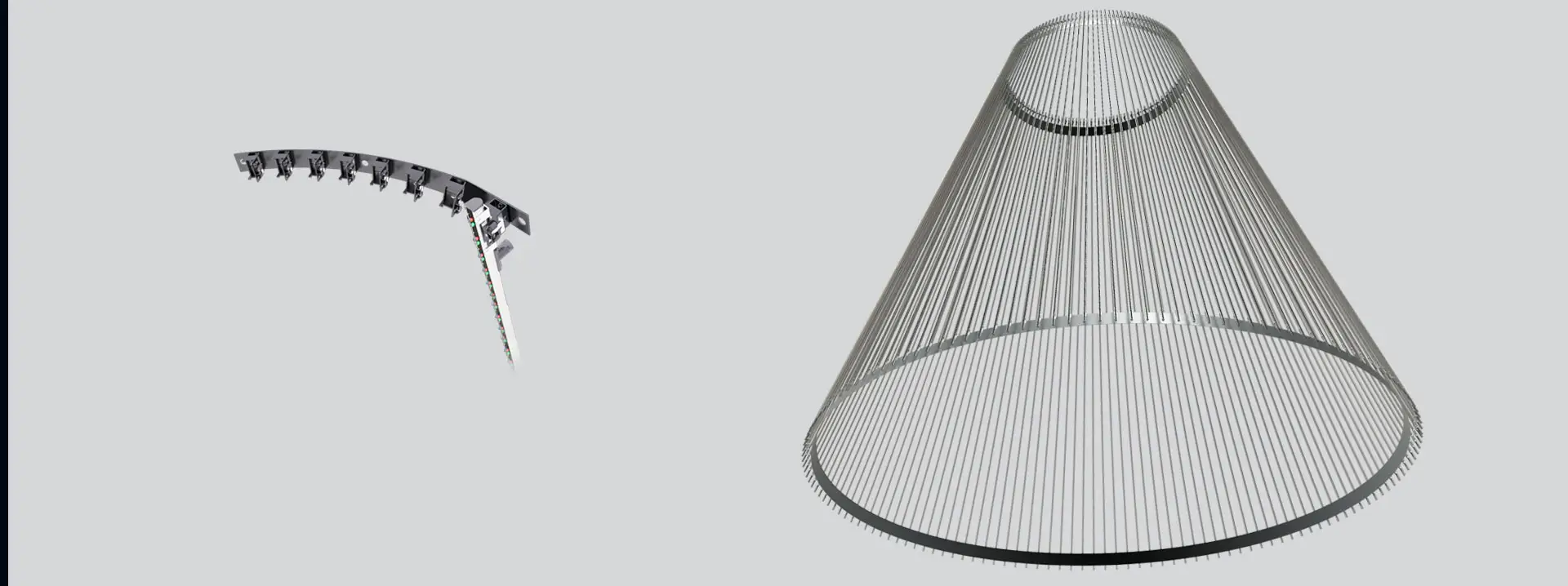

Stainless Steel Wire Version:

The stripes could be installed in a strong stainless steel wires, no need any extra steel frame structure;
Save installation space, manpower, installation time;

Easy Installation:

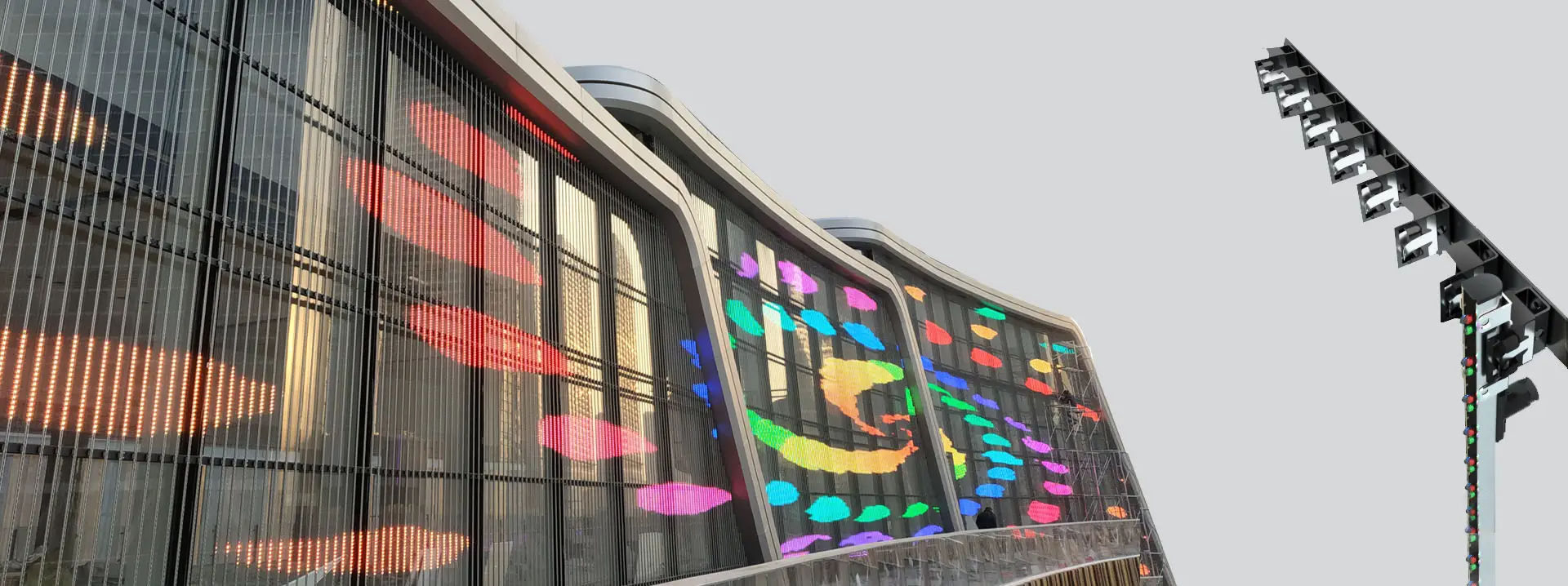

Simple frame structure or stainless steel wire installation enable the B stripes to be installed very easy, fast, and tidy, fits for lage-sized media facade installations, like skycrapers, business buildings, shoppingmall, statium, city landmark;

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Parameter Unit B25 B31.25 B42.5 B100
Pixel pitch mm 25 31.25 42.5 1000
Brightness nits 7000 7000 5500 4000
Panel size mm 3000*12*13 3375*12*13 3400*12*13 3200*12*13
Pixel matrix per panel 120×1 108×1 80×1 80×1
Transparency rate % 45 60 68 88
Panel material Aluminum
Panel weight Kg/m 0.27
Ingress protection (front/rear) IP 66/66
Maintenance Front access/rear access
