MV Ultra Series

MV Ultra Series

  • Novastar 5G & Brompton Control Solutions(Optional)Achieves high-speed, low-latency transmission, millisecond-level precise control, and 8K ultra-high-definition display, completely transforming the high-end rental market.
  • Splice with Multiple Series CabinetsSupports combine with CF Pro & CF Pro II Series flexible LED displays, and DN-B Series HD LED displays, enabling rapid installation and versatile shapes.
  • Vertical SplicingOptional 45° beveled cabinets for right-angle splicing, cubic columns, and cubes.
  • Curved SplicingOptional curved cabinets with adjustable angles: -10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°.

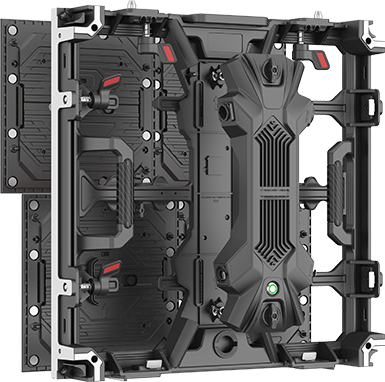

  • Staggered Splicing
View Specifications

Categories: ,

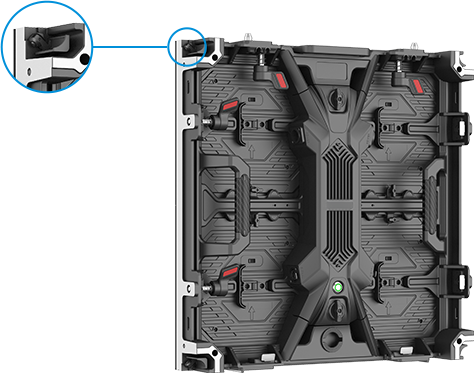

Anti-collision Corners (Optional)

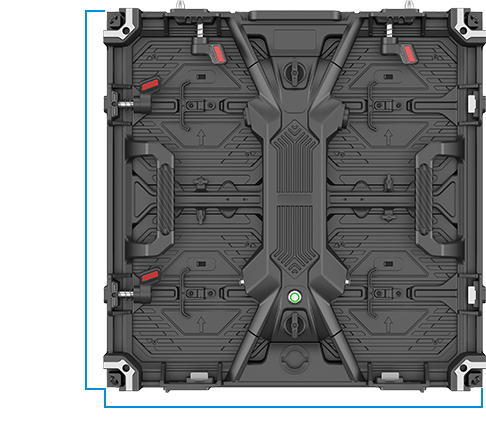

all in one rear cover

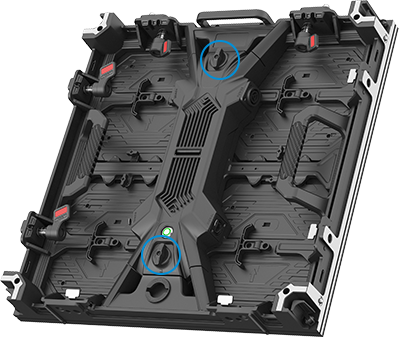

Rotary knob

Specification

Features

5G

5G

7680Hz

7680Hz

curved

curved

Vertical Splicing

Vertical Splicing

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Model No. MV Ultra1.5 MV Ultra1.9 MV Ultra1.9 MV Ultra2.6 MV Ultra2.9
Pixel Pitch 1.5 1.9 1.9 2.6 2.9
LED Type SMD1212 SMD1515 2in1 SMD1515 SMD2020
Packaging Technology GOB/HOB GOB/HOB / / /
Pixel Density 409600/㎡ 262144/㎡ 262144/㎡ 147456/㎡ 112896/㎡
Panel Dimension 500mm*500mm*76mm 500mm*500mm*76mm 500mm*500mm*76mm 500mm*500mm*76mm 500mm*500mm*76mm
Panel Resolution 320*320pixel 256*256pixel 256*256pixel 192*192pixel 168*168pixel
Scan Rate 1/40 or 1/32 or 1/16 1/32 or 1/16 1/32 or 1/16 1/24 1/21
Brightness 600-800nits 600-800nits 600-800nits 800-1000nits 800-1000nits
Refresh Rate 3840Hz/7680Hz
Gray Scale 14-16Bit
Color Temperature 6500-9500K
Panel Weight 8.5kg±10%
Panel Material Die-Casting Cabinet
Max. Power Consumption 580W/㎡
Ave. Power Consumption 290W/㎡
Viewing Angle H:160°/V:140°
Working Voltage AC200-240V~50/60Hz or AC100-240V~50/60Hz
IP Rating IP30
Maintenance Front/Rear
Curve -10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°
Max. Stacking/Hanging 10m
Operating Temp/Humidity -20℃~+45℃；10%~60%RH
Storage Temp/Humidity -40℃~+60℃；10%~60%RH
Control System Novastar/Colorlight/Magnimage/Brompton
