MT55/62 Series

MT55/62 Series

  • Optional customized back panelCustomized back-cover design can effectively cover the box cable. users can choose the back-cover material, color, pattern, etc., according to the needs of the perfect integration into the overall design style in the display, to enhance the brand image.
  • Convenient maintenance, save your energy and effort.Support front and rear maintenance for module, power supply, HUB , easy to be compatible with different use scenarios; Integrated back cover knob design, easy to remove and replace.
  • Creative piling
  • Support Brompton control systemMT55/62 panel is not only compatible with NOVA, Colorlight system, but also support Brompton system, providing a greater range of brightness, wider color gamut space,more efficient tuning process, to bring the audience a high-quality, immersive visual experience.
View Specifications

Category:

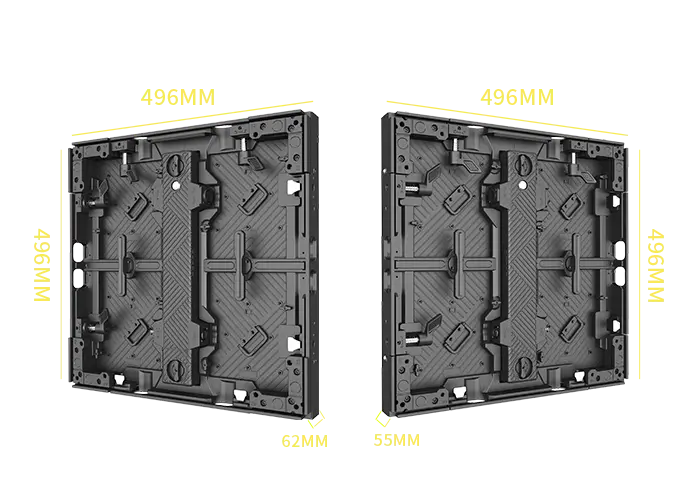

Optional thickness

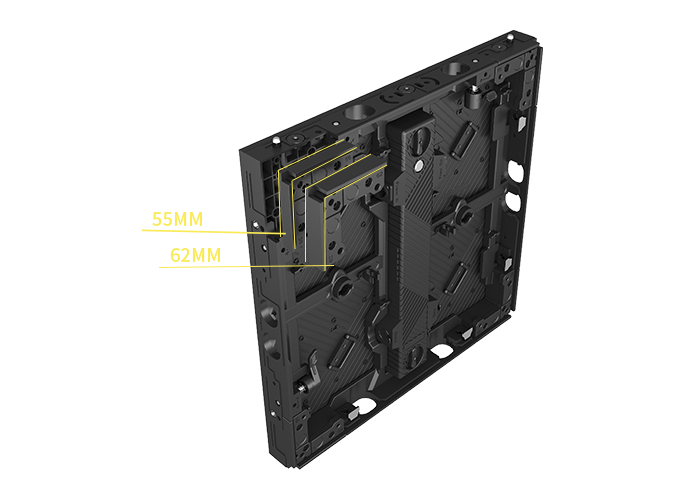

The thickness of the panel can be adjusted to 496*496*55mm/62mm by adding corner plate, which matches the common frames in the market.

With corner plate

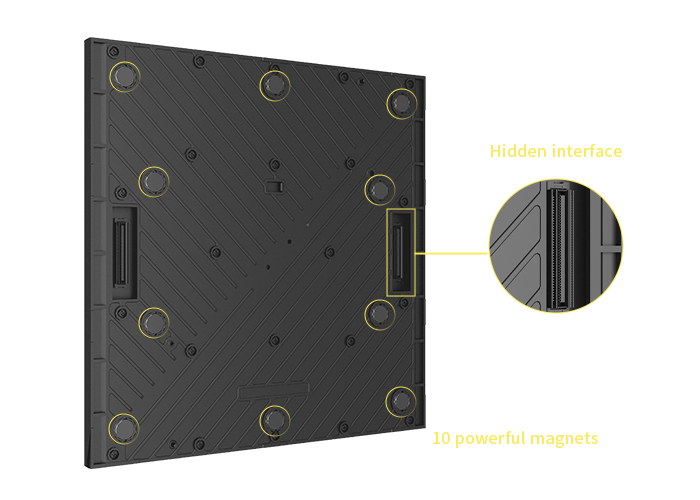

Magnetic modules, fast installation

The module is equipped with magnetic suction function, accurate positioning, fast installation, greatly improving the efficiency of module replacement.

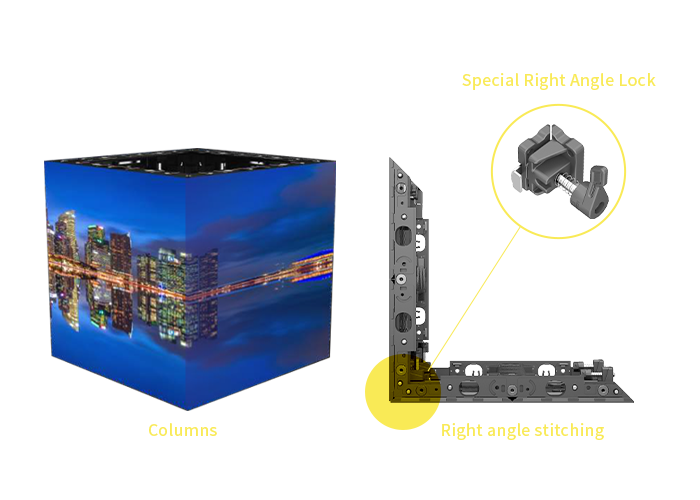

Support corner panels installation

The panel can be cut 45 °on both two sides to make corner panel and build column shape with fastener corner locks， which is fast and easy installation.

Features

Ultra-high precision

Ultra-high precision

Quick maintenance

Quick maintenance

90° Splicing

90° Splicing

496

496

4K

4K

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Model No. MT55/62 1.2 MT55/62 1.5 MT55/62 1.9 MT55/62 1.9 MT55/62 1.9 MT55/62 1.9 MT55/62 2.3
Plxel Pitch 1.29mm 1.55mm 1.93mm 1.93mm 1.93mm 1.93mm 2.38mm
LED Type SMD1010 SMD1212 SMD1515 S-SMT 1212 Two in one Mini Four in one SMD1515
GOB/HOB GOB/HOB GOB/HOB GOB/HOB / / / /
Pixel Density 589,824pixel/m² 409,600pixel/m² 262,144pixel/m² 262,144pixel/m² 262,144pixel/m² 262,144pixel/m² 173,056pixel/m²
Brightness 500-800nits 700-1000nits 700-1000nits 900-1100nits 700-1000nits 700-1000nits 800-1200nits
Color Temperature 6500-9500K
Scan Rate 1/32 1/16 or 1/40 1/16 or 1/32 1/8 or 1/16 or 1/32 1/16 or 1/32 1/32 1/26
Panel Dimension(W*H*D) 496*496*55mm/19.5″x19.5″x2.1″
496*496*62mm/19.5″x19.5″x2.4″
Panel Resolution 384*384pixel 320*320pixel 256*256pixel 256*256pixel 256*256pixel 256*256pixel 208*208pixel
Panel Weight 8.8kg±10%/19.84lb±10%
Cabinet Material Die-Casting Cabinet
Max Power Consumption ≤580w/m²
Ave Power Consumption ≤290w/m²
Viewing Angle H:160° V:140°
Refresh Rate 7680/3840Hz
Gray Scale 14-16bit
Working Voltage

（Wide Voltage）

 AC100-240V～ 50-60Hz
Working Voltage

（Narrow Voltage）

 AC200-240V～ 50-60Hz
IP Rating IP30
Curve /
Max Stacking/Hanging 8m
Serviceability Front/Rear
Lifetime 50000h
Operating Temp/Humidity -20℃-+45℃；10%-60%RH
Storage Temp/Humidity -40℃-+60℃；10%-60%RH
Processing platform Novastar/Colorlight /Magnimage/Brompton
Certifications CE-EMC,CE-LVD,FCC,ETL
