MT Ⅱ series

MT Ⅱ series

  • Quick InstallationTwo fast latchs on the top. Make sure installation easily and quickly.
  • Quick InstallationTwo fast latchs on panel side, easy and fast installation.

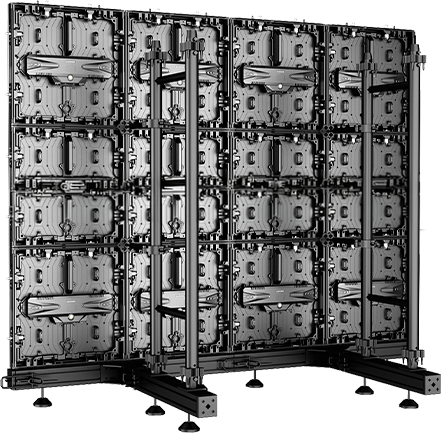

  • Perfect match with display rackaSupport standard display rack.
  • Perfect match with display rackWiring inside through rack & multiple ways.
  • Perfect match with display rackRear side can be perfect covered by SEG fabric.

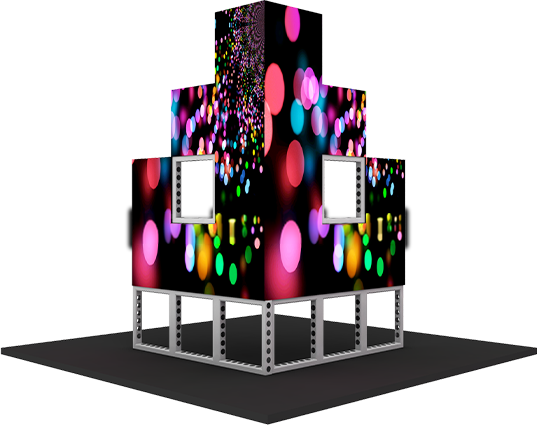

  • Creative ShapesI. 45° tiles is optional Can be used for right-angle splicing and cubic column splicing.

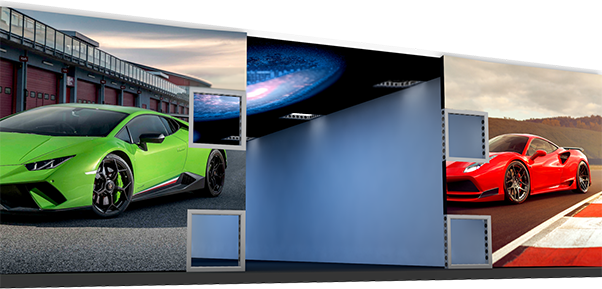

  • Work with flexible panel to create creative design.MT II + MT edge :“L” shape
  • Work with flexible panel to create creative design.MT II + MT edge: “U” shape
View Specifications

Categories: ,

Unique Dimensions Quick Installation Creative Shapes

Designer inspires

Wall or celling at your will.

The maximum height of the screen for stacking is 10 meters.

The maximum height of the screen for stacking is 10 meters.

Features

90° stitching

90° stitching

Fast installation

Fast installation

Easy Maintenance

Easy Maintenance

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Model No. MTⅡ2.3 (Indoor) MTⅡ2.8 (Indoor)
Pixel Pitch 2.3mm 2.8mm
LED Type SMD1515 SMD2020
Pixel Density 175858 pixel/m² 125910 pixel/m²
Brightness 500–800 nits 800–1000 nits
Color Temperature 6500–9500K
Panel Dimension (W×H×D) 496×496×62mm / 19.5″×19.5″×2.4″
Panel Resolution 208×208 pixel 176×176 pixel
Panel Weight 9.0kg (±10%) / 19.84lb (±10%)
Cabinet Material Die-Casting Cabinet
Max Power Consumption ≤650w/m²
Ave Power Consumption ≤325w/m²
Viewing Angle H:160°   V:140°
Refresh Rate 3840Hz
Gray Scale 14–16bit
IP Rating IP30
Max Stacking / Hanging 10m
Lifetime 50,000 h
Operating Temp / Humidity -20℃-+45℃；10%-60%RH
Storage Temp / Humidity -40℃-+60℃；10%-60%RH
