Modular Fine Pitch LED Panel T Series 0.7 to 2.5mm Indoor

Modular Fine Pitch LED Panel T Series 0.7 to 2.5mm Indoor
Modular Fine Pitch LED Panel T Series 0.7 to 2.5mm Indoor - Image 2
Modular Fine Pitch LED Panel T Series 0.7 to 2.5mm Indoor - Image 3
Modular Fine Pitch LED Panel T Series 0.7 to 2.5mm Indoor - Image 4
Modular Fine Pitch LED Panel T Series 0.7 to 2.5mm Indoor - Image 5
Modular Fine Pitch LED Panel T Series 0.7 to 2.5mm Indoor - Image 6
Modular Fine Pitch LED Panel T Series 0.7 to 2.5mm Indoor - Image 7
Modular Fine Pitch LED Panel T Series 0.7 to 2.5mm Indoor - Image 8

Modular Fine Pitch LED Panel T Series 0.7 to 2.5mm Indoor

  • Die-casting aluminum frame, lightweight and ultra slim
  • 16:9 panel ratio, 609 x 342.56 mm panel for precise 16:9 & 4:3 ratio screens.
  • Full front access.
  • Double up PSU & scan card for additional redundancy. (optional)
  • Low power consumption, noise-free
  • EMC class B approved
  • Wide viewing angle, high refresh & high contrast ratio
  • Certified: TUV-CE/UL/FCC/ROHS
  • Refresh rate: 3840 Hz
Download PDF View Specifications

Category:

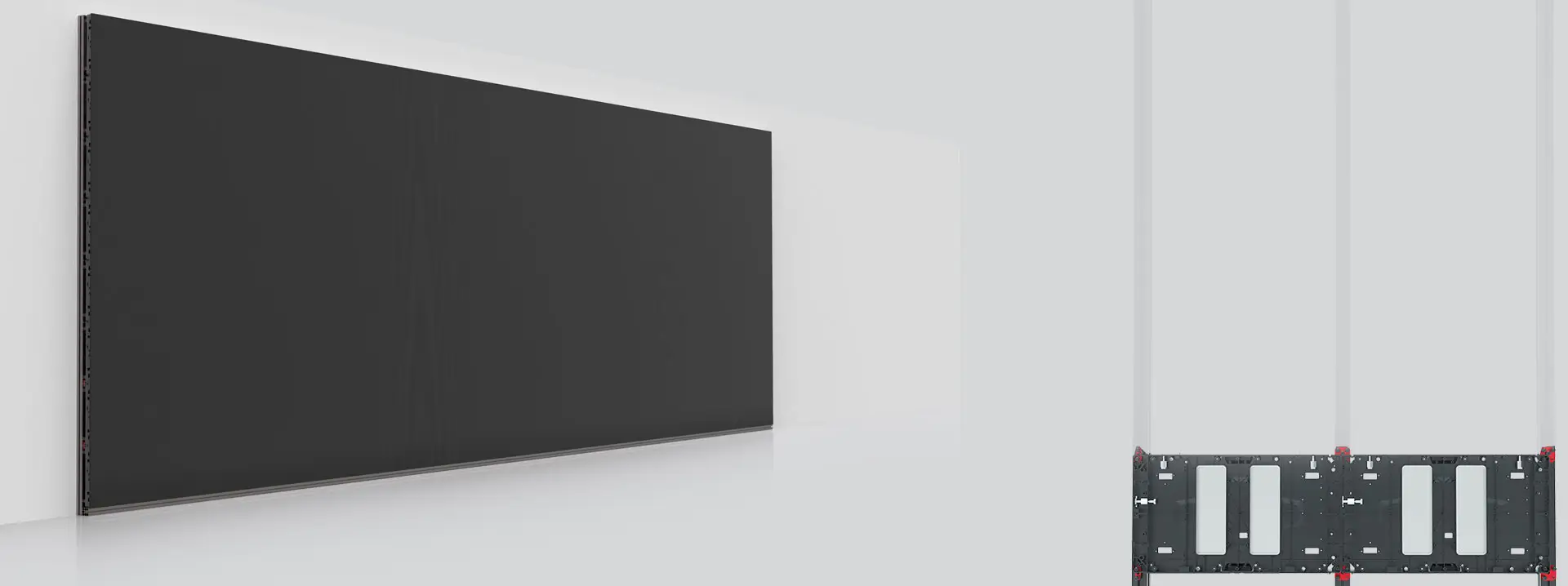

Achieve 16:9 & 4:3 screen's. Easy quick and precise installation.

16:9 panel ratio, 609 x 342.56 mm panel for precise 16:9 & 4:3 ratio screens.

Cinema-Grade HDR.
Using high dynamic range (HDR) technology
28 trillion accurate colors for reproduction.

Ultra High Contrast
20000:1

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Model Unit T0.7 T0.9 T1.2 T1.5 T1.8 T2.5
Pixel pitch mm 0.7813 0.9375 1.25 1.563 1.875 2.538
Brightness nits 500 600 700 800 800 1000
Panel size mm 609 x 342.56 x 75mm (1.99ft x 1.123ft x 2.2 inches)
Pixel matrix per panel 768×432 640×360 480×270 384×216 320×180 240×135
Panel material Die-casting Aluminum
Panel weight Kg/Lbs 10 kg (22.05 lbs)
Ingress protection (front/rear) IP 30/30
Maintenance Full front access
