MB Series–Outdoor Fixed LED Display P3.85 to P16.67mm. IP65

MB Series–Outdoor Fixed LED Display P3.85 to P16.67mm. IP65

  • Available 3.89/6.25/8.33/10/12.5/16.67
  • 30% power-saving solution optional
  • 10000 nits brightness & 7680 Hz refresh rate options
  • Patented water-egress technology.
  • Patented louver design for higher contrast.
  • Excellent heat dissipation.
  • Double safety design, fused modules & PSU.
  • IP65
Download PDF View Specifications

Category:

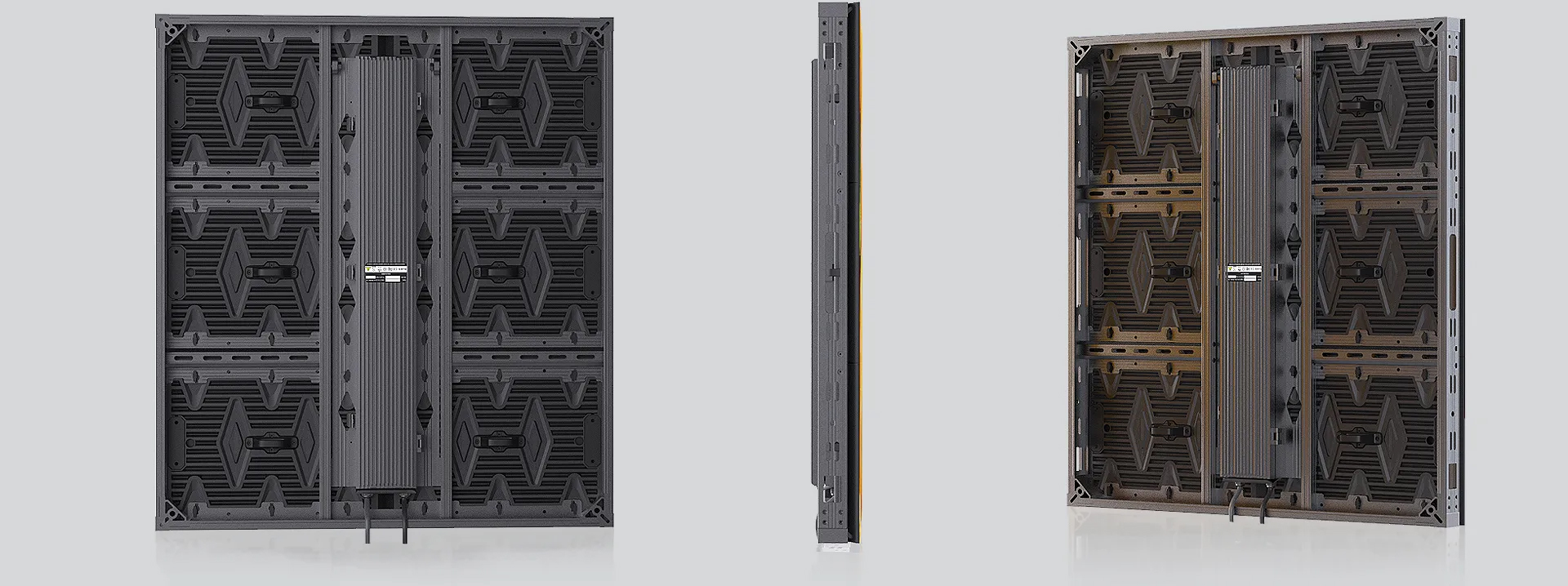

Cabinet size: 800mm*900mm, ultra-light: 29.5kg/sqm:

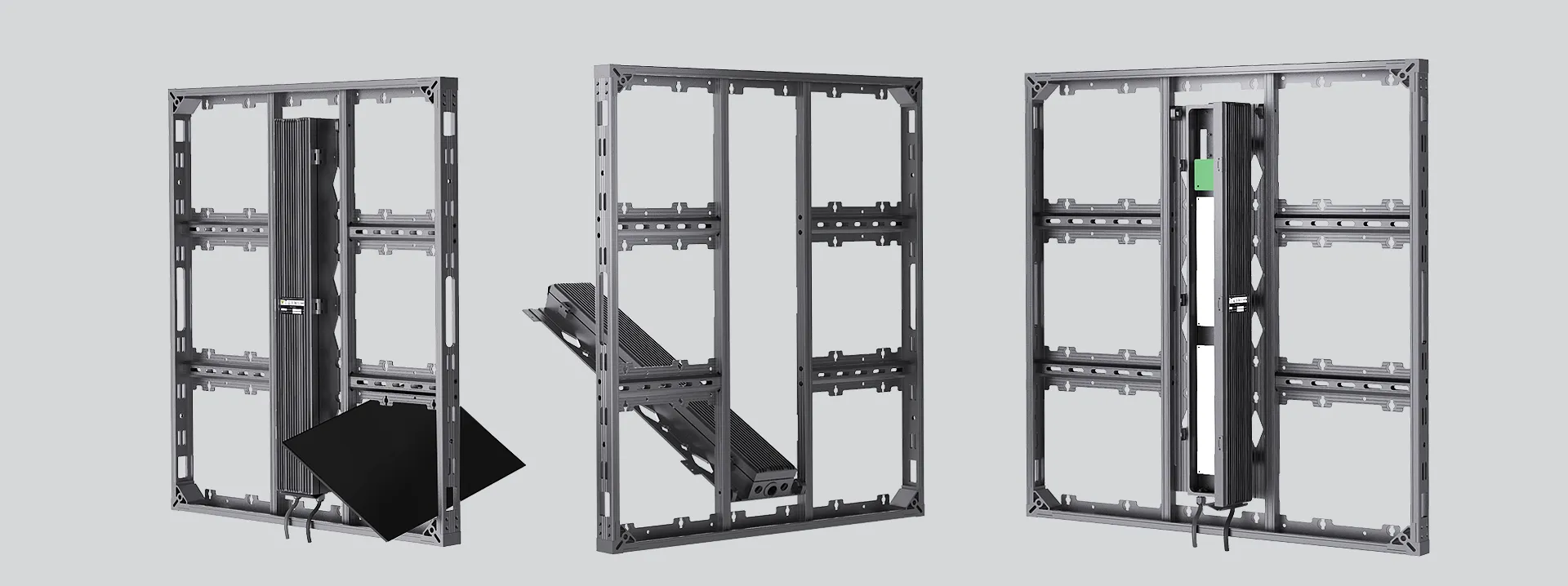

Full front or rear access, all components:

Outdoor multi-scene fixed installation:

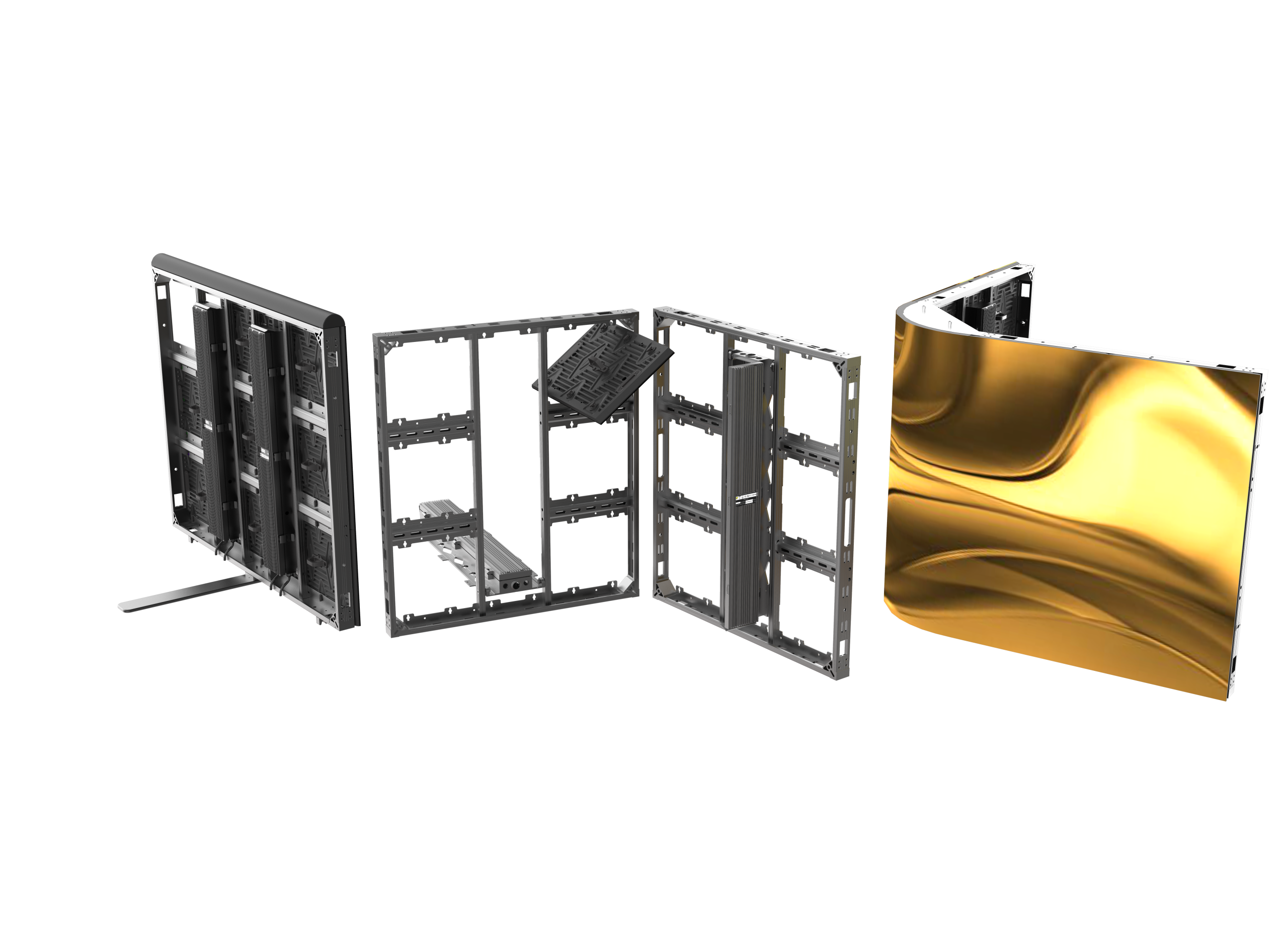

Curved, 90-degree, flat support

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Parameter Unit MB3 MB6 MB8 MB10 MB12.5 MB16.67
Pixel pitch 3.85 6.25 8.33 10 12.5 16.67
Brightness nits 5000 6000-6500
Panel size mm 800*900*112
Pixel matrix per panel 208×234 128×144 96×108 80×90 64×72 48×54
Panel material Aluminum
Panel weight Kg 21
Ingress protection (front/rear) IP 65/54
Maintenance Front access/rear access
