LE Series

LE Series

  • Multiple InstallationLE Series LED displays offer unparalleled flexibility for any event, providing both convex and concave curving capabilities for seamless deployment and adaptable configurations.
  • Advanced Wide Viewing AngleH: 160°, V: 140°, Shadowless Full-frame. Ensures great visibility for your LED screen on stage.
  • Integrated Wind-bracing Frame (Optional)The optional wind-bracing frame for LE cabinet makes stacking installation easy & convenient. Friendly for big festival events hanging up for wind resistance. Essential for LED stage screen rental and concert LED wall setups.
  • Dolly System (Optional)Transport Dolly Package Available. 2×6 panels / Dolly. Improves installation efficiency and streamlines logistics for stage LED display rental.
View Specifications

Category:

LE and LE mini

LE Series

LE Series won iF DESIGN AWARD 2020, fully upgraded in 2023

Mutiple Cabinets Option

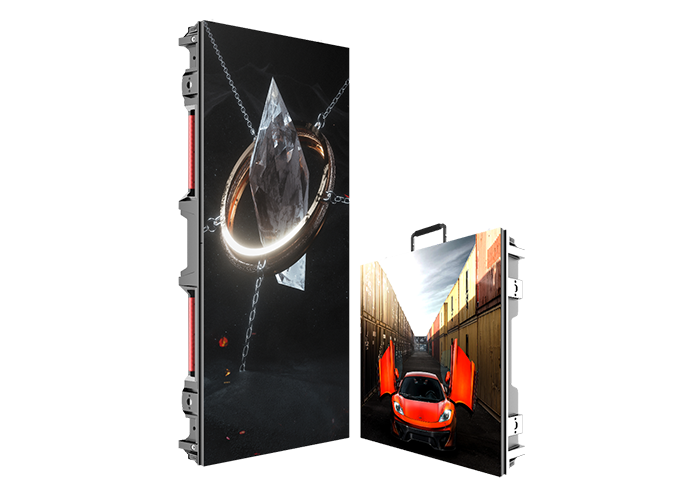

Straight & curved cabinets optional for LE & LE Mini
Curved cabinet supports curved splicing（-10 °~10 °）

Stable Performance

Features

Full Waterproof

Full Waterproof

Easy Maintenance

Easy Maintenance

Wide Viewing Angle

Wide Viewing Angle

Curving Options

Curving Options

Support Touring Frame

Support Touring Frame

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Model No. LE2.97B (Indoor) LE2.97B (Outdoor) LE3.91B (Outdoor) LE4.81B (Outdoor)
Pixel Pitch 2.97mm 2.97mm 3.91mm 4.81mm
LED Type SMD2020 SMD1415 SMD1921 SMD1921
Pixel Density 112896 pixel/㎡ 112896 pixel/㎡ 65536 pixel/㎡ 43264 pixel/㎡
Panel Resolution 168*336 pixel
168*168 pixel		 168*336 pixel
168*168 pixel		 128*256 pixel
128*128 pixel		 104*208 pixel
104*104 pixel
Scan Rate 1/21 1/21 1/16 or 1/8 1/13 or 1/7
Brightness 800–1200 nits General Brightness for White LED: 3000–4000 nits
General Brightness for Black LED: 2000–2500 nits
high Brightness for High Black LED: 3000–4000 nits		 General Brightness for White LED: 3500–4500 nits
General Brightness for Black LED: 2300–2500 nits
high Brightness for High Black LED: 3500–4000 nits		 General Brightness for White LED: 3500–4500 nits
General Brightness for  Black LED: 2500–3000 nits
high Brightness for High Black LED: 3500–4000 nits
Color Temperature 6500–9500K
Panel Dimension LE mini:500mm*500mm*87mm    LE:500mm*1000mm*87mm
Panel Weight LE mini:9.5kg±10%  LE:14.7kg±10%
Cabinet Material Die-Casting Cabinet
Max Power Consumption ≤650w/㎡
Average Power Consumption ≤325w/㎡
Viewing Angle H:160° / V:140°
Refresh Rate 3840Hz / 7680Hz
Gray Scale 14–16 Bit
Working Voltage AC100-240V~50/60Hz or AC200-240V~50/60Hz
IP Rating IP31 Front IP65,Rear IP54
Curve -10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°
Max Stacking / Hanging Height 10m
Lifetime 50000h
Operating Temp / Humidity -20℃~+45℃；10%~60%RH -20℃~+45℃；10%~90%RH
Storage Temp / Humidity -40℃~+60℃；10%~60%RH
