iMeeting Series
- Display size 108″,136″,162″,16:9 ratio
- Integrated display control, intelligent system, audio and video
- High refresh, high grayscale, wide color gamut
- Scan code to LED screen, free annotation
- Optional windows and andriod dual system
Why Choose Westwood
Ultra HD Clarity
Crisp visuals with vibrant detail
Energy Efficient Design
Optimized performance with low power
Protection
Durable build for long-lasting safety

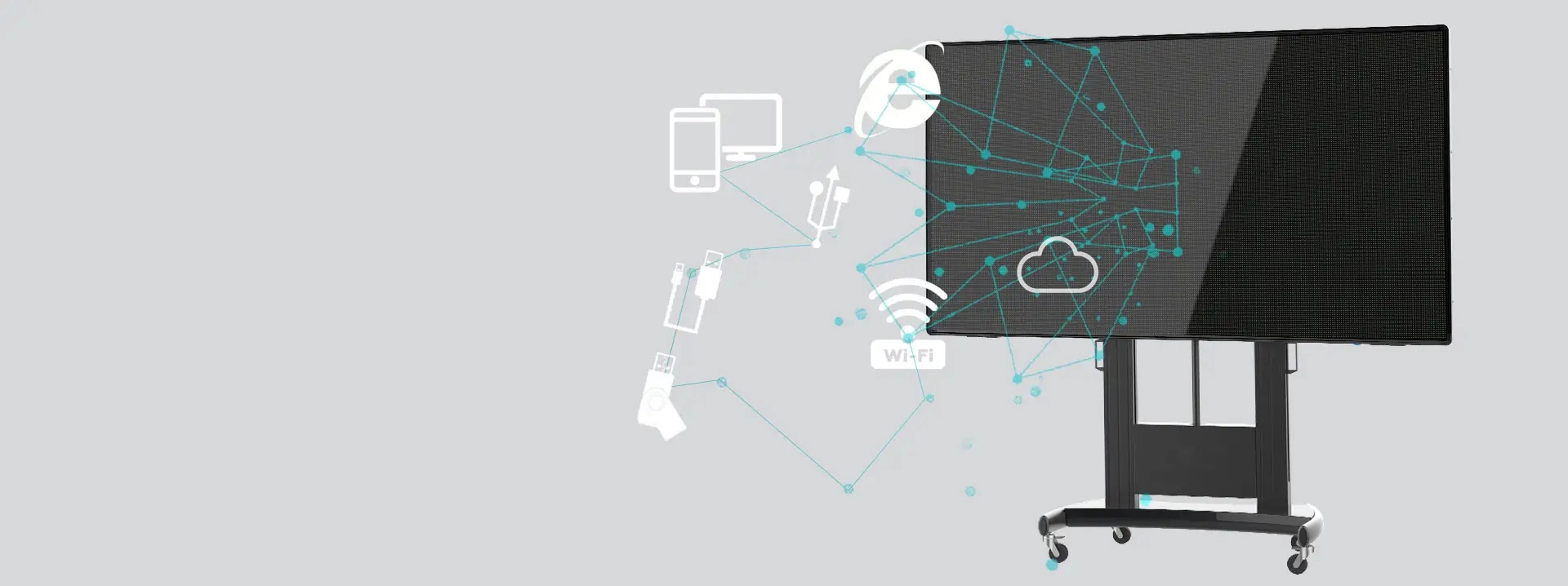

Smart Connectivity
Seamless control with modern linking
Eye Comfort Technology
Reduced strain for effortless viewing
Protection
Reliable shielding in all conditions
Technical Parameter
| Parameter | Unit | iMeeting LED Screen | ||||||||
| Pixel pitch | mm | iMeeting0.9 | iMeeting1.2 | iMeeting1.5 | ||||||
| Display size | inch | 108.4 | 135.5 | 162.6 | 108.4 | 135.5 | 162.6 | 108.4 | 135.5 | 162.6 |
| Brightness | nits | 500 | 700 | 800 | ||||||
| Pixel configuration | R/G/B | SMD Mini | ||||||||
| Colour temperature | deg.K | 6500 | ||||||||
| Viewing angle – Horizontal (50% brightness) | deg. | 160 (+80/-80) | ||||||||
| Viewing angle – Vertical (50% brightness) | deg. | 160 (+80/-80) | ||||||||
| Recommended minimum viewing distance | m | 0.9 | 1.2 | 1.5 | ||||||
| Panel width | mm | 2419 | 3019 | 3619 | 2419 | 3019 | 3619 | 2419 | 3019 | 3619 |
| Panel height | mm | 1460 | 1797 | 2134.5 | 1460 | 1797 | 2134.5 | 1460 | 1797 | 2134.5 |
| Panel depth | mm | 45.5 | ||||||||
| Panel area | m² | 3.53 | 5.4 | 7.7 | 3.53 | 5.4 | 7.7 | 3.53 | 5.4 | 7.7 |
| Panel material | Alloy Aluminum | |||||||||
| Panel weight | Kg | 136 | 196 | 286 | 136 | 196 | 286 | 136 | 196 | 286 |
| Ingress protection (front/rear) | IP | 30/30 | ||||||||
| Pixel matrix per panel | 2560×1440 | 3200×1800 | 3840×2160 | 1920×1080 | 2400×1350 | 2880×1620 | 1536×864 | 1920×1080 | 2304×1296 | |
| Brightness control | 255 | |||||||||
| Digital processing | bit | 14bit | 13bit | 13bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit |
| Frame rate | Hertz | 50~60 | ||||||||
| Display refresh rate | Hertz | 3840 | 2880 | 2880 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Input voltage | VAC | 100~240 | ||||||||
| Input power frequency | Hertz | 50~60 | ||||||||
| Input power (Max.) | W/Set | 2100 | 3300 | 4700 | 2000 | 3200 | 4500 | 2100 | 3300 | 4700 |
| Input power (Avg.) | W/Set | 735 | 1200 | 1700 | 700 | 1120 | 1600 | 735 | 1200 | 1700 |
| Operating temperature range | deg.C | -10~+40 | ||||||||
| Lifetime (50% brightness) | Hour | 100,000 | ||||||||
