Panel can be used dependently or together with touring frame

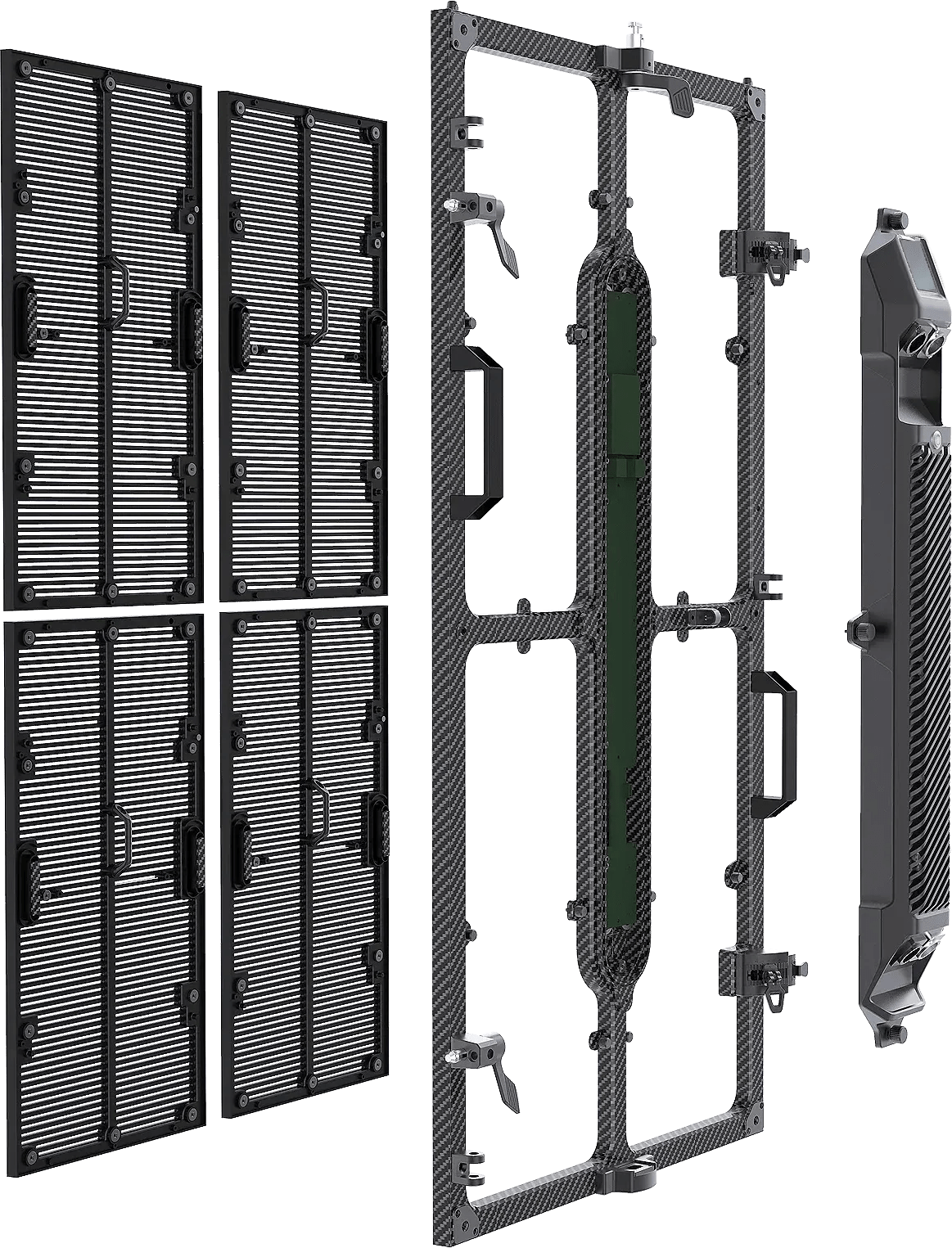

Panel modular design, LED module transparent or Non-transparent optional
Patented curve lock, flexible between -10°~10°
Hot plug PSU, back maintenance available
Available to replace the stacking structure

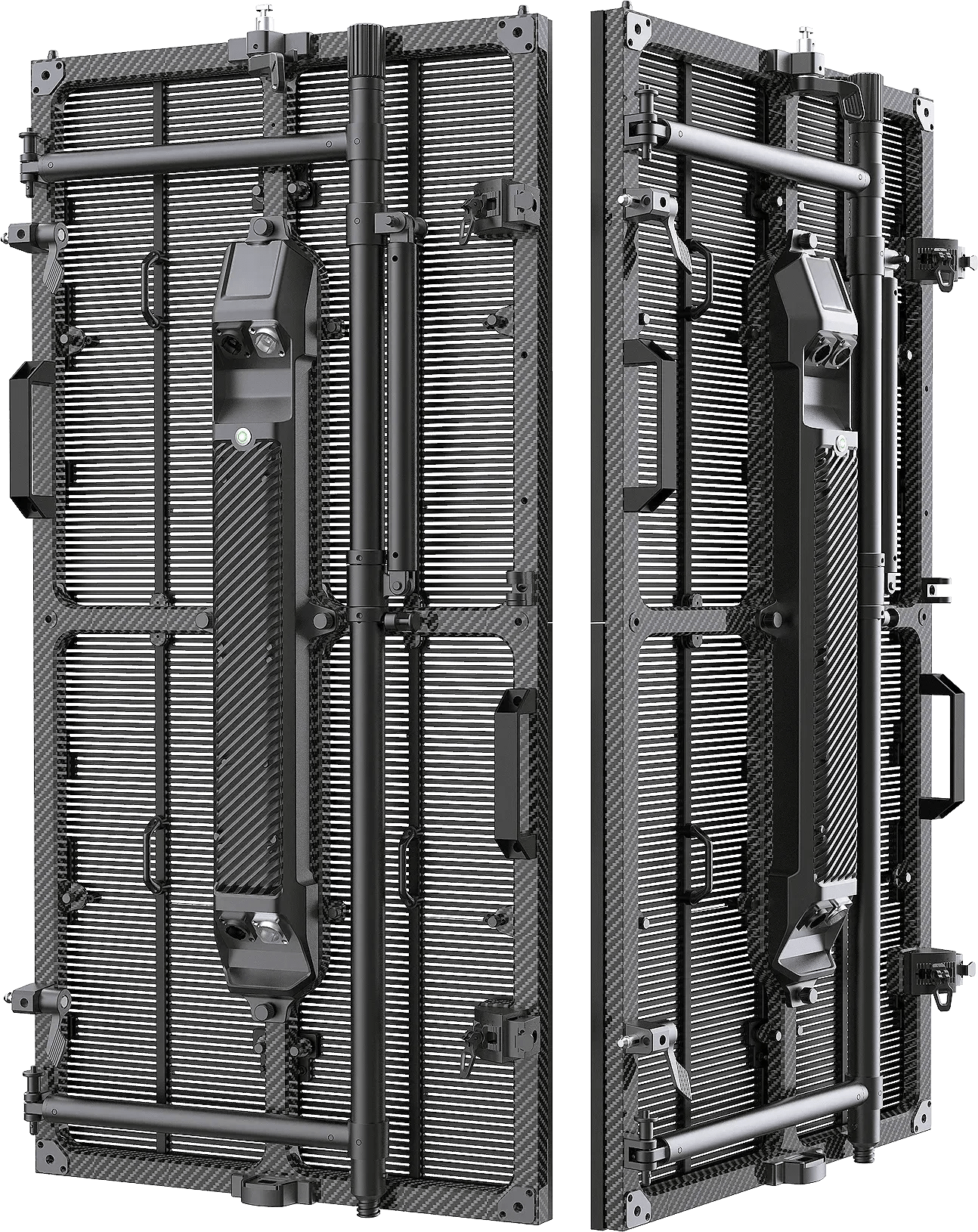

Touring frame+curve lock to realize -10°~10° flexible display
Ultra light weight, convenient for installation and packing
The best configuration for building large LED wall
Dolly available to be locked one by one, suitable for quick building in large size
LED panel protected by the dolly, safer for panels
Faster building for large display with touring frame + dolly
Crisp visuals with vibrant detail
Optimized performance with low power
Durable build for long-lasting safety
Seamless control with modern linking
Reduced strain for effortless viewing
Reliable shielding in all conditions
| Parameter | Unit | iCarbon2.8i | iCarbon3.9i | iCarbon3.9 | iCarbon4.8 | iCarbon6.9 | iCarbon8.9 |
| Pixel pitch | mm | 2.841 | 3.906 | 3.906 | 4.807 | 6.944 | 8.929 |
| Brightness | nits | 1000 | 1000 | 5000 | 5000 | 4500 | 4000 |
| Panel size | mm | 500*1000*80 | |||||
| Pixel matrix per panel | 176×352 | 128×256 | 128×256 | 108×204 | 72×144 | 56×112 | |
| Transparency rate | % | / | / | / | / | 30/25 | 35/30 |
| Panel material | Magnesium+Carbon fibre | ||||||
| Panel weight | Kg | 9.9 | 9.9 | 8.7 | 8.7 | 6.2 | 6.1 |
| Ingress protection (front/rear) | IP | 30/40 | 30/40 | 65/65 | 65/65 | 65/65 | 65/65 |
| Maintenance | Front access/rear access | ||||||
