High-end Rental LED Panel X Series

High-end Rental LED Panel X Series
High-end Rental LED Panel X Series - Image 2
High-end Rental LED Panel X Series - Image 3
High-end Rental LED Panel X Series - Image 4
High-end Rental LED Panel X Series - Image 5
High-end Rental LED Panel X Series - Image 6
High-end Rental LED Panel X Series - Image 7
High-end Rental LED Panel X Series - Image 8
High-end Rental LED Panel X Series - Image 9
High-end Rental LED Panel X Series - Image 10
High-end Rental LED Panel X Series - Image 11
High-end Rental LED Panel X Series - Image 12

High-end Rental LED Panel X Series

  • Modular design
  • Front & rear access on both LED module and power box
  • -10°~10°curve installation
  • 90°degree right angle cabinet available
  • Smart module
  • Certificate：CE/FCC/UL/ROHS
  • High refresh rate：3840HZ
Download PDF View Specifications

Category:

Modular design, quick disassembly and assembly

Magnetic pins to help installation
GOB modules available
Bottom LEDs protection design
Module safety rope available

Stacking

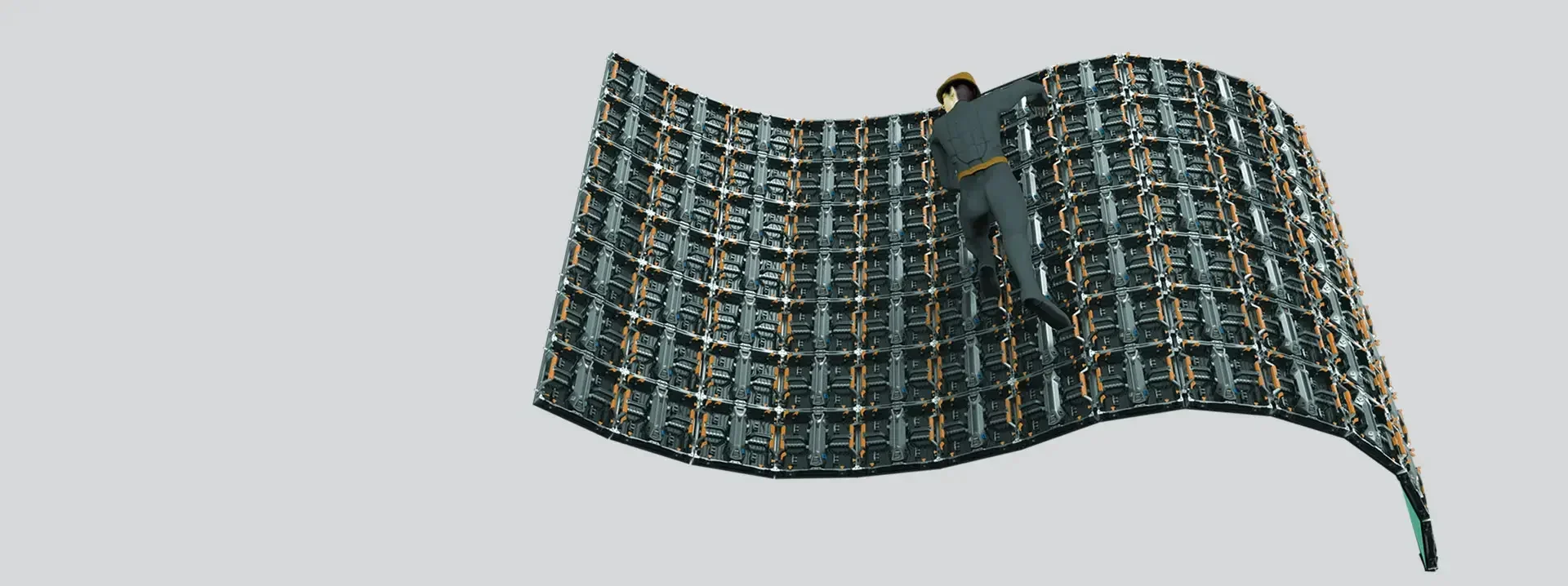

-10°~ 10°curve design
Stacking frame available, for easy assemble and disassemble

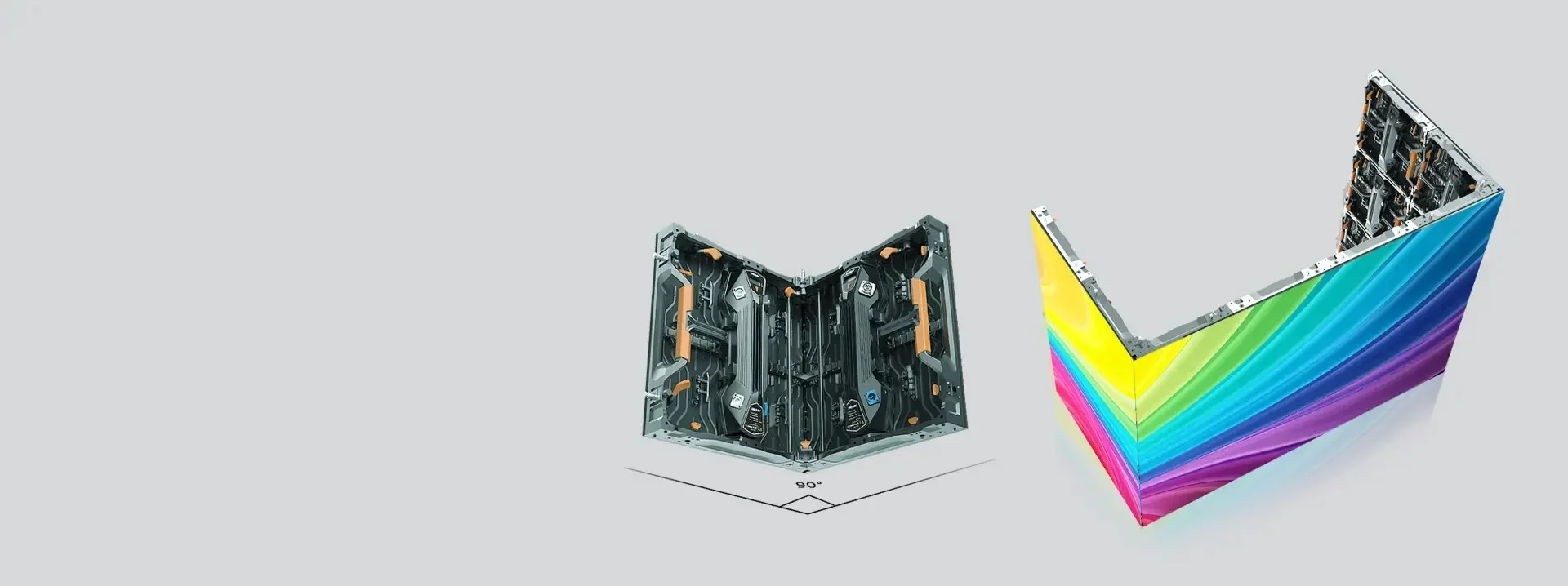

90 degree Right Angle Installation

Easily make corner installation
can cooperate with any other curve angle cabinet to make seamless installation

Hanging

Conventional hanging or curve hanging
Intergrated ladder
Easy for access

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Parameter Unit X1.5i X1.9i X2.6i X2.9i X3.9i X3.1 X3.9 X4.4 X5.2
Pixel pitch mm 1.563 1.953 2.604 2.976 3.906 3.125 3.906 4.464 5.208
Brightness nits 600 800 1500 1500 1500 3000 5000 5000 5000
Panel size mm 500*500*100
Pixel matrix per panel 320×320 256×256 192×192 168×168 128×128 160×160 128×128 112×112 96×96
Panel material Aluminum
Panel weight Kg 10.9 10.9 10 10 10 10.5 10.5 10.5 10.5
Ingress protection (front/rear) IP 30/30 30/30 30/30 30/30 30/30 65/54 65/54 65/54 65/54
Maintenance Front access / rear access
