Fine Pitch Rental LED Panel TRB Series

Fine Pitch Rental LED Panel TRB Series

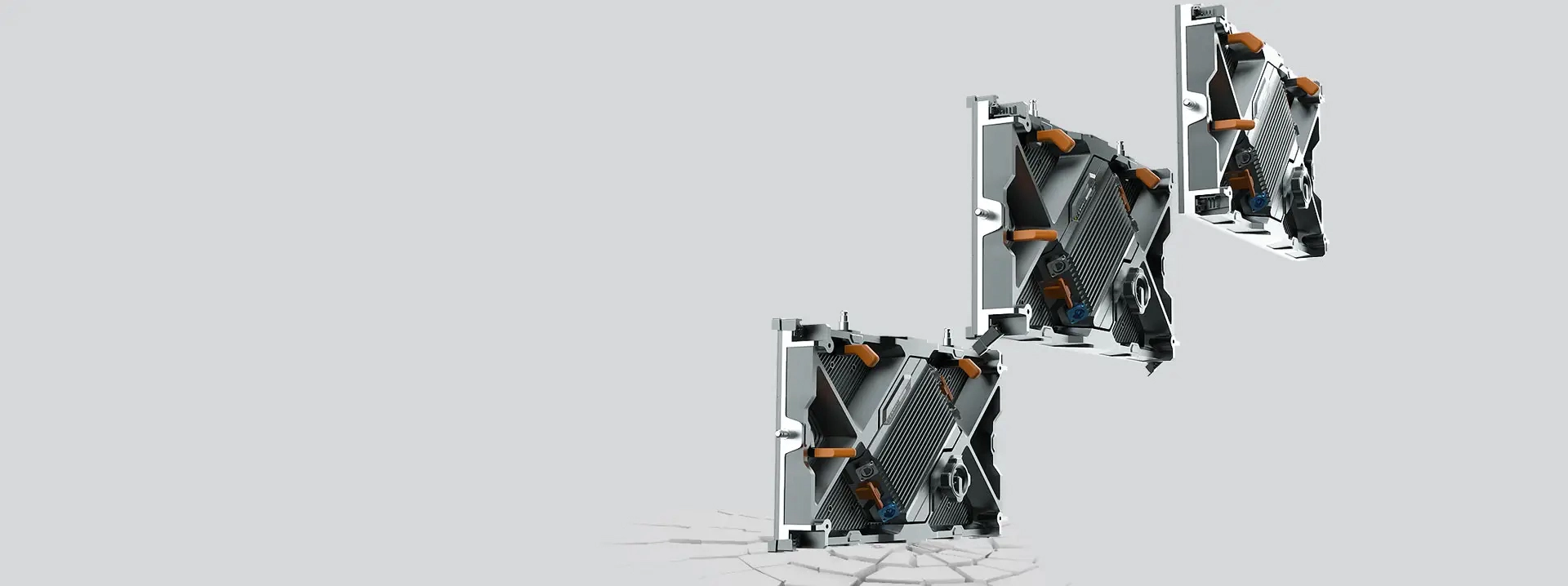

  • Modular design
  • Rental frame,panel and power box seperately
  • Module front access
  • Panel splicing & adjustment
  • Cetification: CE/UL
  • Refresh rate:3840HZ
Download PDF View Specifications

Category:

For quick access and disassembly

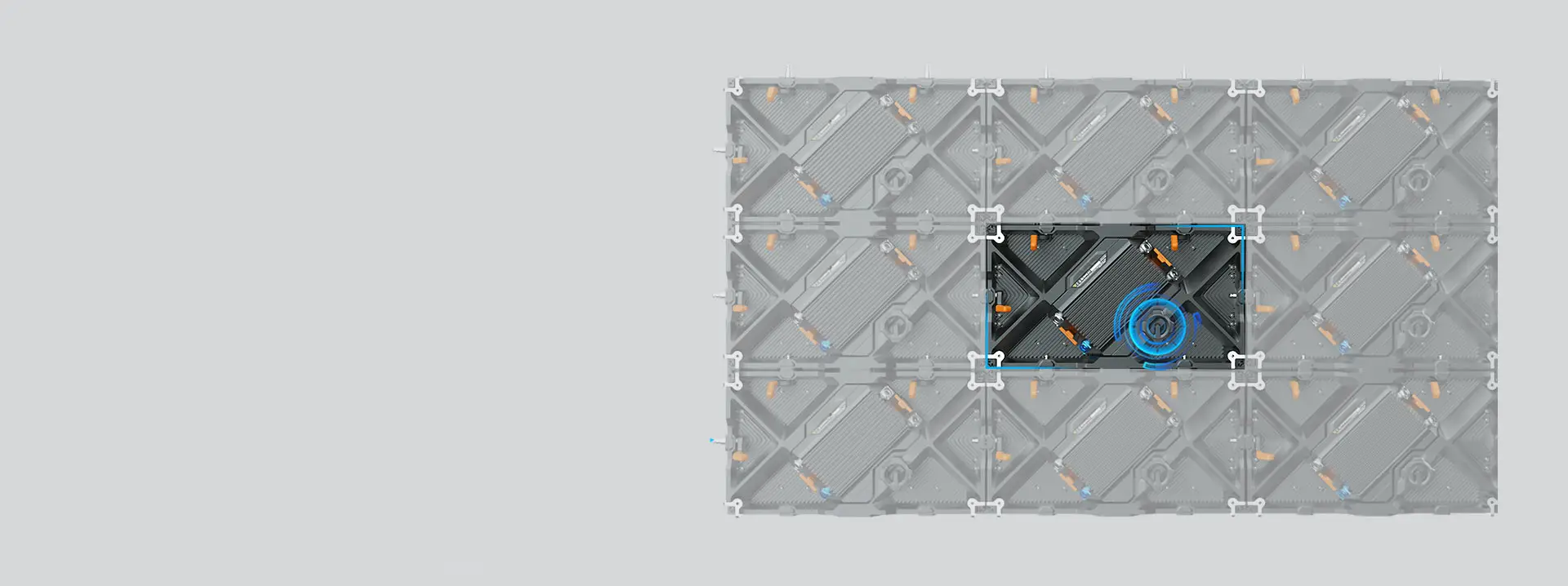

Panel Adjustment:
Panel horizontal & vertical adjustment
Ensure panel flatness

Panel Standard 16:9 ratio:
Perfect setup for a standard 16:9 screen

Panel Protection Foot:
Protect module lamp face

Cinema Grade HDR:
Using high dynamic HDR technology

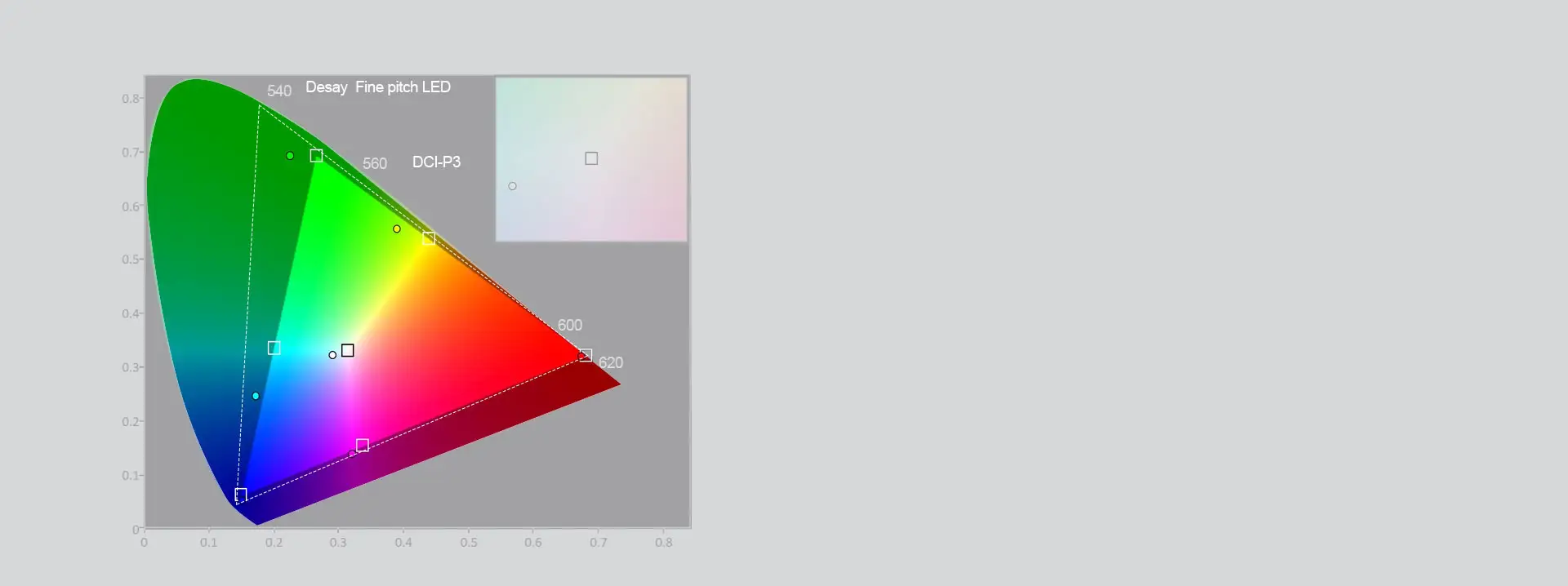

Colour gamut meets the dci-p3 standard
More than 28 trillion color display, let you feel the lifelike world up close

Ultra High Contrast:
Adopt U – level screen technology
Achieve the contrast effect of 20000:1, enhance image quality
Restore the natural color, enhance visual impact

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Model number Unit TRB0.7 TRB0.9 TRB1.2 TRB1.5 TRB1.8
Pixel pitch mm 0.7813 0.9375 1.25 1.563 1.875
Luminance nits 500 600 700 800 800
Case size mm 600*337.5*39
Box pixel matrix 768×432 640×360 480×270 384×216 320×180
Box material Die-casting Aluminum
Box weight Kg 9.2
Protection level (front/rear) IP 30/30
Maintenance mode front access / rear access
