CS II Series

CS II Series

  • Creative Splicing-Triangle PanelTriangle panels can be assembled into shapes like boats, Christmas trees, pinwheels, etc.
  • Creative Splicing-Sector PanelSector panels can be assembled into heart, semi-circular and circular shapes.
  • Panel CompatibilityCS II Series has excellent compatibility and supports seamless splicing with other Westwood LED display series that use the same 500×500mm cabinet structure and locking system.
  • Compatible with
    – Westwood Carbon Series (500×500 cabinet variants)
    – Standard 500×500 rental LED panels
    – Other creative display series using identical mechanical connections
  • Application Scenario
View Specifications

Category:

Triangle Screen and Sector Screen

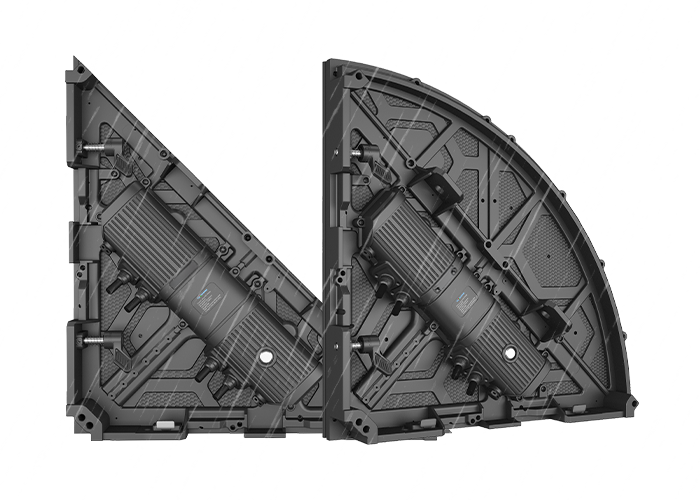

High IP-Rated Protection

CS II Series Outdoor Version Front IP65, Rear IP54 Rainproof & Fog-resistant Defying Water Erosion.

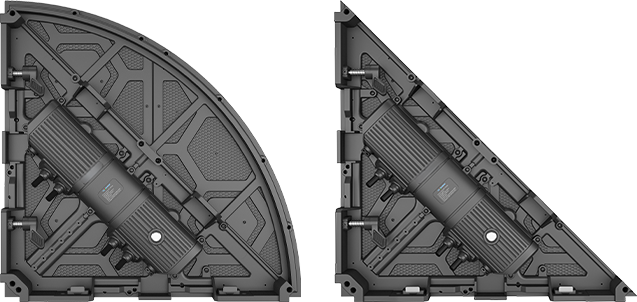

Integrated Design

Integrated design of power supply, receiving card, HUB card and back cover makes maintenance more efficient and convenient.

Features

Triangle Screen

Triangle Screen

Waterproof

Waterproof

4K

4K

Modular design

Modular design

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Triangle Screen
Model No. CS II2.6(Indoor) CS II2.9(Indoor) CS II3.91(Indoor) CS II3.91(outdoor) CS II4.81(outdoor)
Pixel Pitch 2.6mm 2.97mm 3.91mm 3.91mm 4.81mm
LED Type SMD1515 SMD2020 SMD2020 SMD1921 SMD1921
Pixel Density 147456 pixel/m² 112896 pixel/m² 65536 pixel/m² 65536 pixel/m² 43264 pixel/m²
Scan Rate 1/24 1/21 1/16 1/16 1/13
Panel Dimension 500*500
Panel Weight 6kg±10% 6kg±10% 6kg±10% 6kg±10% 6kg±10%
Panel Material Die-casting Cabinet
Viewing Angle H:160º  V:140º
Refresh Rate 3840Hz/7680Hz
Gray Scale 13～16bit
IP Rating IP30 IP65
Max Stacking/Hanging Height 10m
Curve Optional
Sector Screen
Model No. CS II2.6(Indoor) CS II2.9(Indoor) CS II3.91(Indoor) CS II3.91(outdoor) CS II4.81(outdoor)
Pixel Pitch 2.6mm 2.97mm 3.91mm 3.91mm 4.81mm
LED Type SMD1515 SMD2020 SMD2020 SMD1921 SMD1921
Pixel Density 147456 pixel/m² 112896 pixel/m² 65536 pixel/m² 65536 pixel/m² 43264 pixel/m²
Scan Rate 1/24 1/21 1/16or1/8 1/16or1/8 1/13or1/7
Panel Dimension 500*500
Panel Weight 7.5kg±10% 7.5kg±10% 7.5kg±10% 7.5kg±10% 7.5kg±10%
Panel Material Die-casting Cabinet
Viewing Angle H:160º  V:140º
Refresh Rate 3840Hz/7680Hz
Gray Scale 13～16bit
IP Rating IP30 IP65
Max Stacking/Hanging Height 10m
Curve Optional
