Classic Rental LED Panel M Series

m series
Classic Rental LED Panel M Series - Image 2
Classic Rental LED Panel M Series - Image 3
Classic Rental LED Panel M Series - Image 4
Classic Rental LED Panel M Series - Image 5
Classic Rental LED Panel M Series - Image 6
Classic Rental LED Panel M Series - Image 7
Classic Rental LED Panel M Series - Image 8
Classic Rental LED Panel M Series - Image 9
Classic Rental LED Panel M Series - Image 10
Classic Rental LED Panel M Series - Image 11
Classic Rental LED Panel M Series - Image 12
Classic Rental LED Panel M Series - Image 13
Classic Rental LED Panel M Series - Image 14

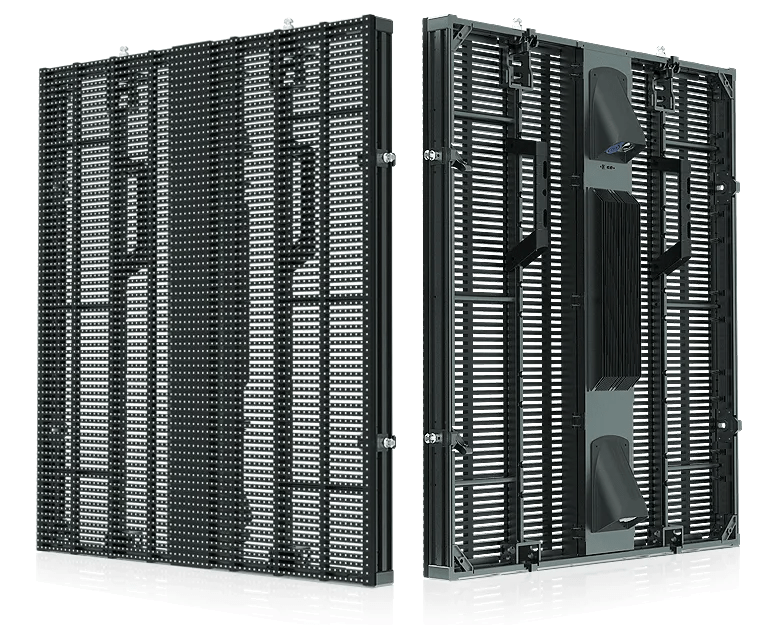

Classic Rental LED Panel M Series

  • Modular design
  • Front & rear access

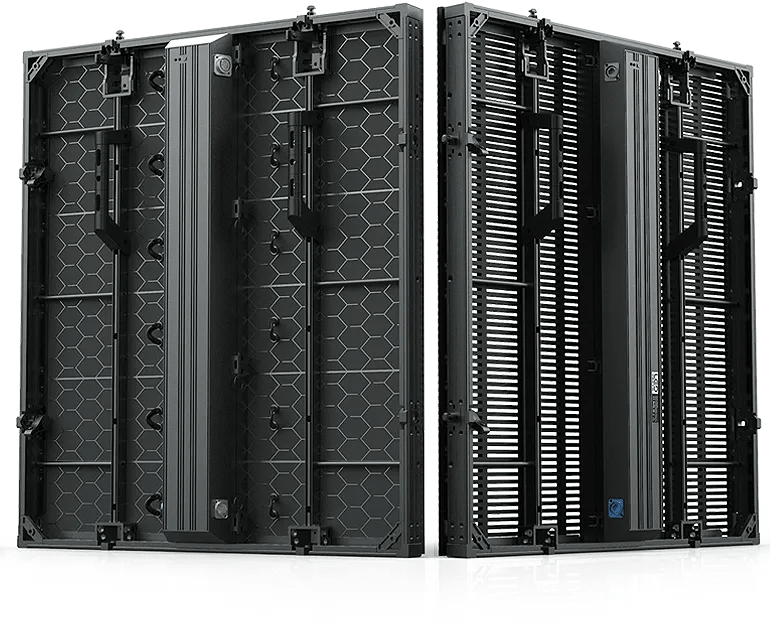

  • Optional LED panel（solid panel/mesh panel）

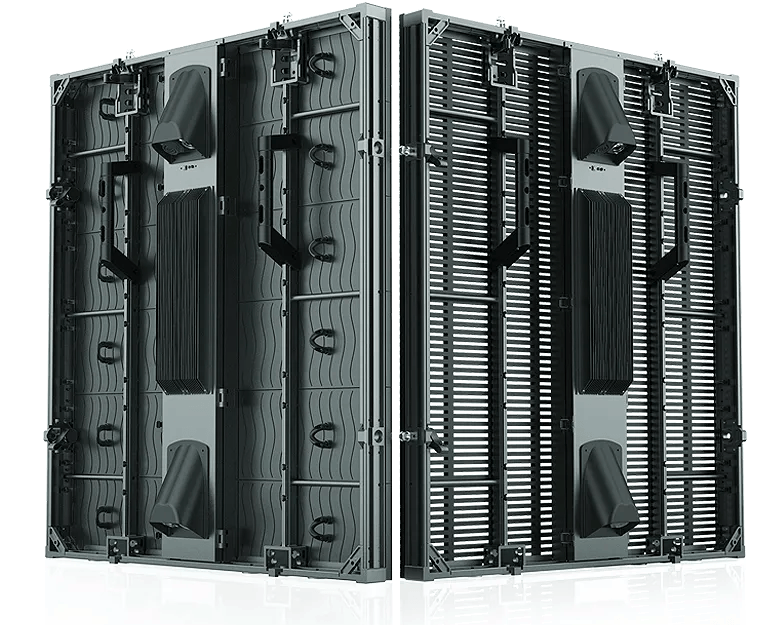

  • Optional PSU design available
  • Tensile aluminium material
  • Perimeter LED display available（with bracket）
  • Certification：CE/FCC/UL/ROHS
  • Refresh rate：3840HZ
Download PDF View Specifications

Category:

Hanging

Quickly assemble and disassemble,one man installation

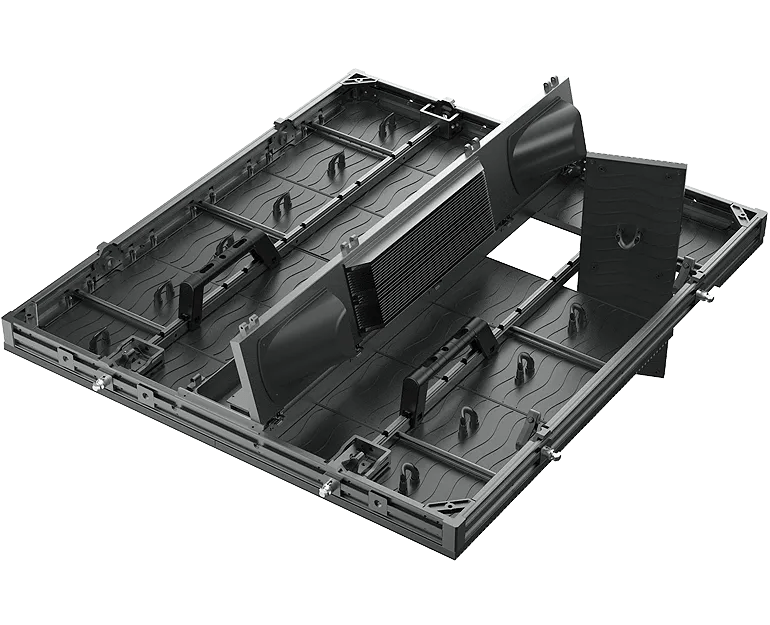

Cabinet Features

Magnetic lock design on four sides,
better flatness Cooling fin on PSU for fast heat dissipation Big handlebar,
easy to handle Magnet-assisted assembly

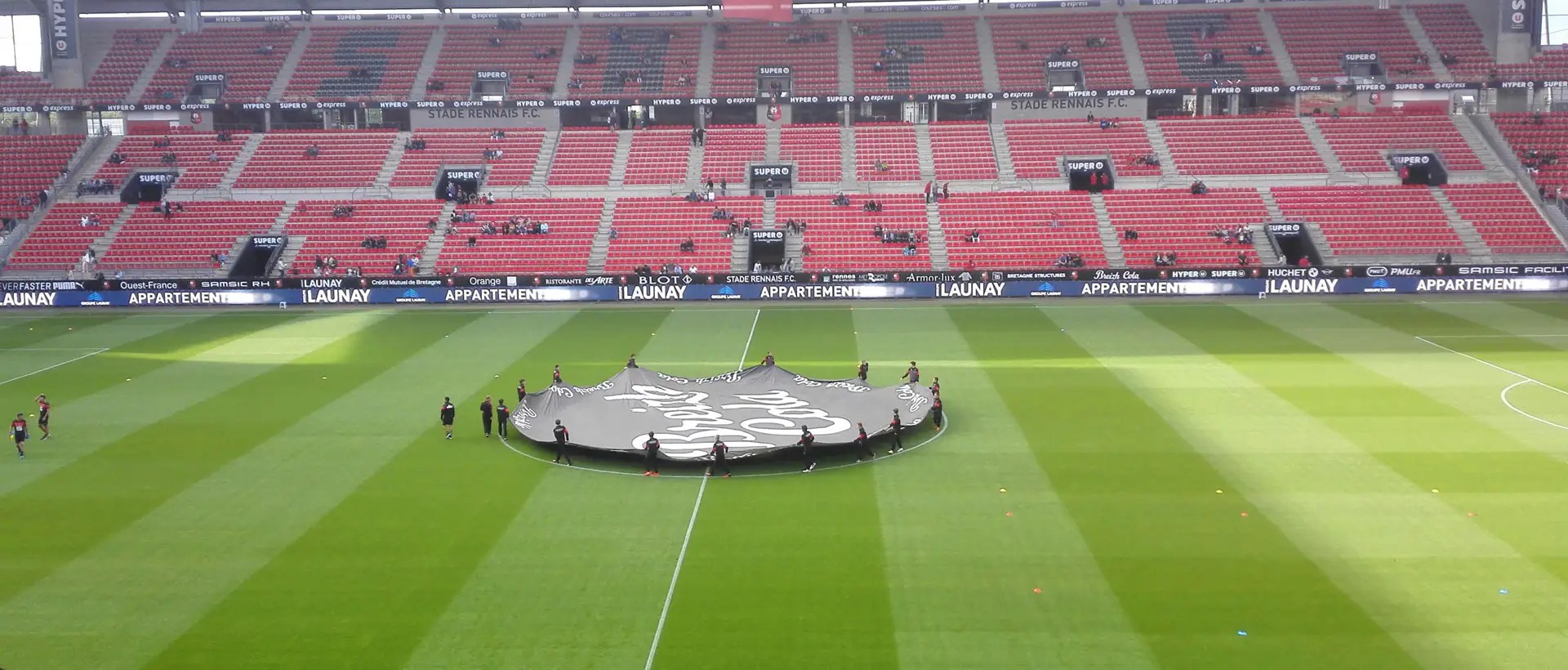

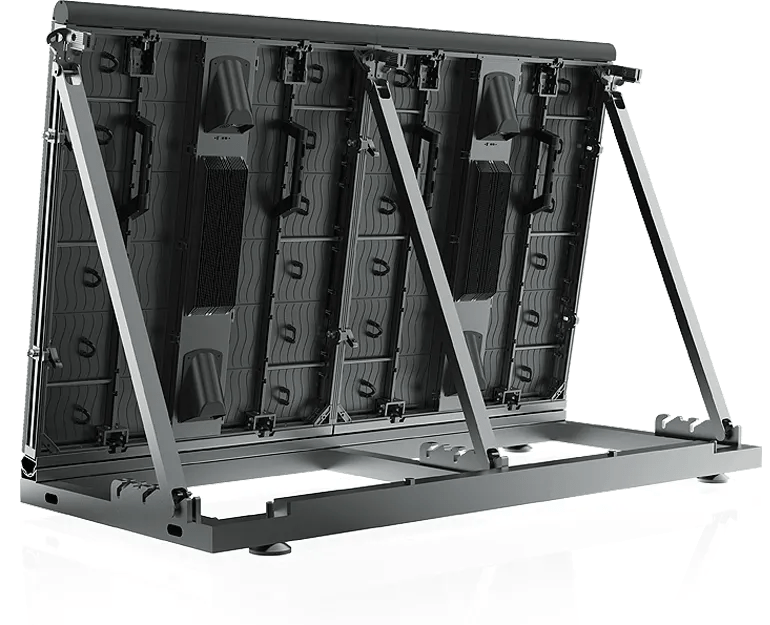

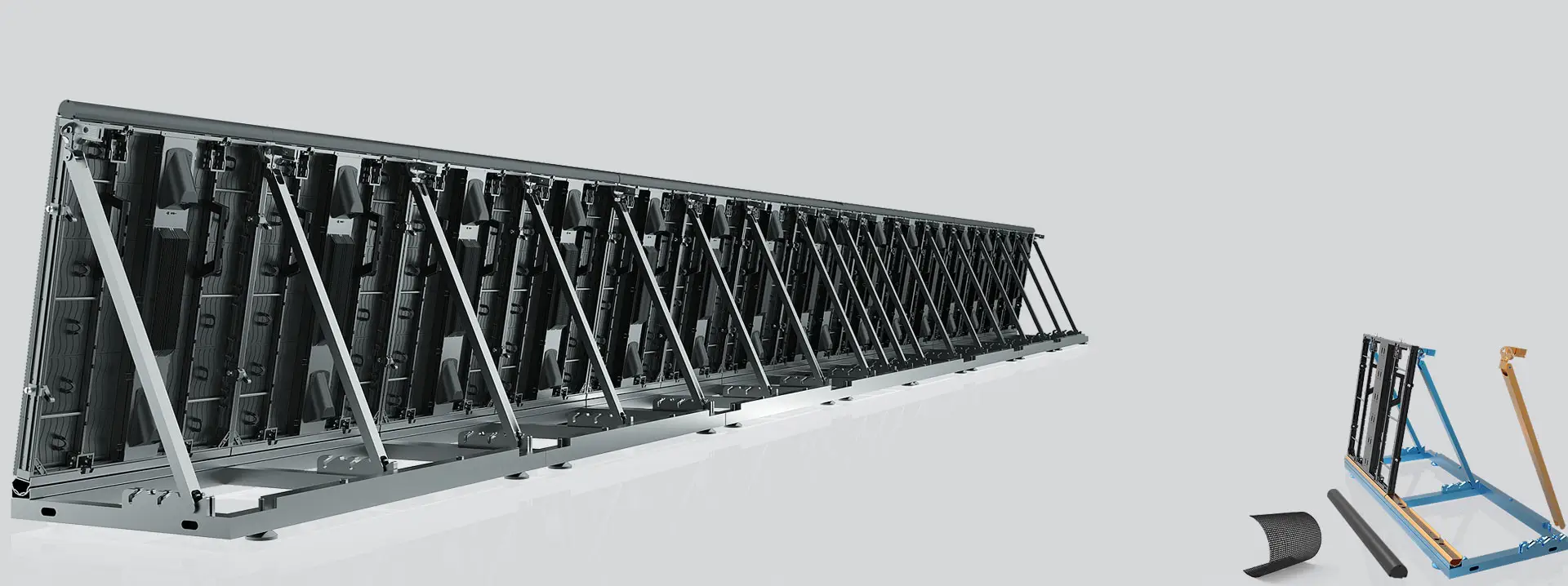

Perimeter LED Display

Available for perimeter LED display
Bracket with adjustable angle
Anti-crash mask available
Customized top R curve

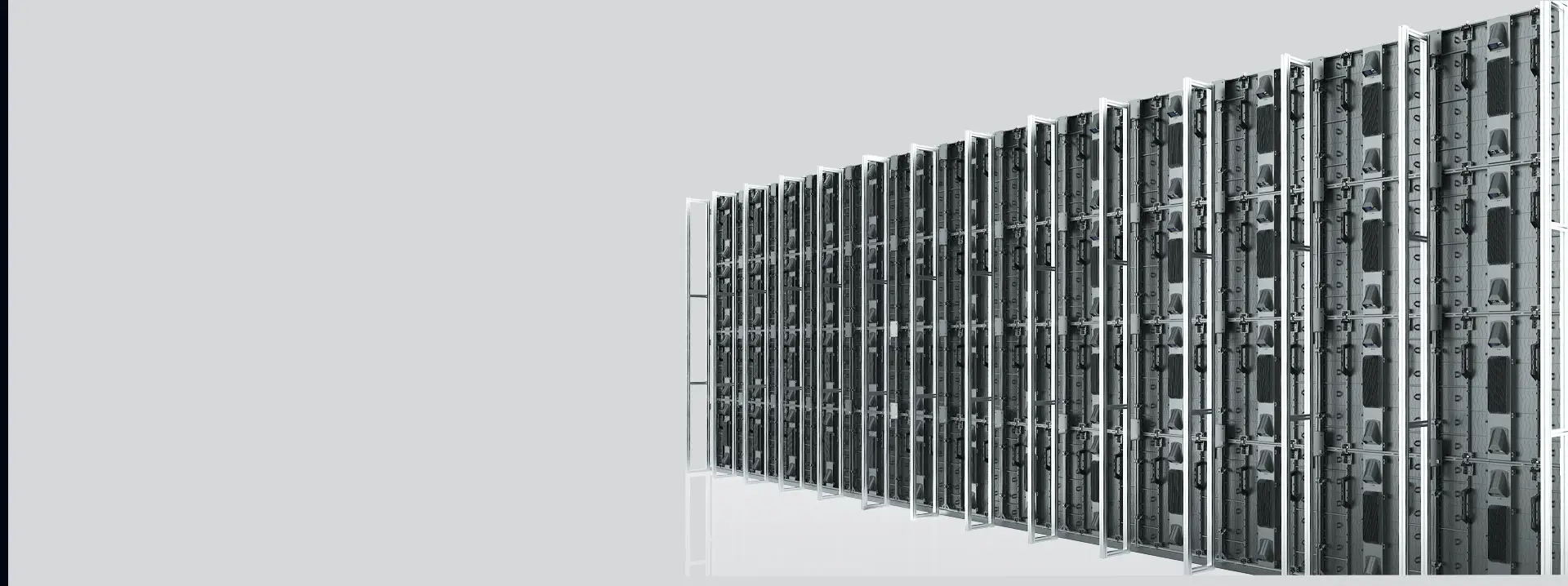

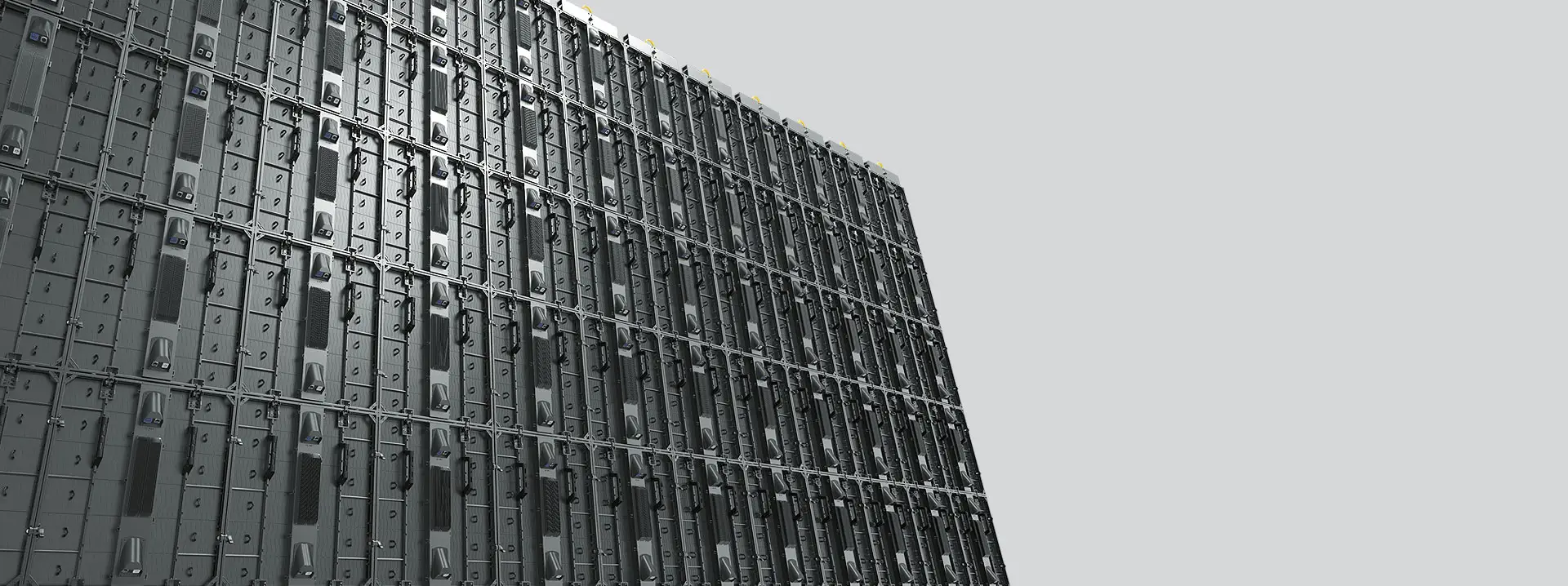

Stacking

Cabinet stacking, easily and quickly assemble

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Parameter Unit M3 M4 M5 M6 M8 M10 M12 M16
Pixel pitch mm 3.846 H4.762/V4.688 5.556 6.25 8.333 10 12.5 16.667
Brightness nits 5000 5000 5000 5000 5000 5000 5000/4000 5000
Panel size mm 800*900*65
Pixel matrix per panel 208×234 168×192 144×162 128×144 96×108 80×90 64×72 48×54
Transparency rate % 0 0 0 0 0 0 0/18/33 0/22
Panel material Aluminum
Panel weight Kg 19.8 19.8 19.5 17.2 17.2 16.5 16 16
Ingress protection (front/rear) IP 65/54
Maintenance Front access/rear access
