CF Pro Series

CF Pro Series

  • Dual Flexible ModuleModule size: 500mm×250mm Fewer seams, a flatter surface.
    Smoother connections, and superior display quality.

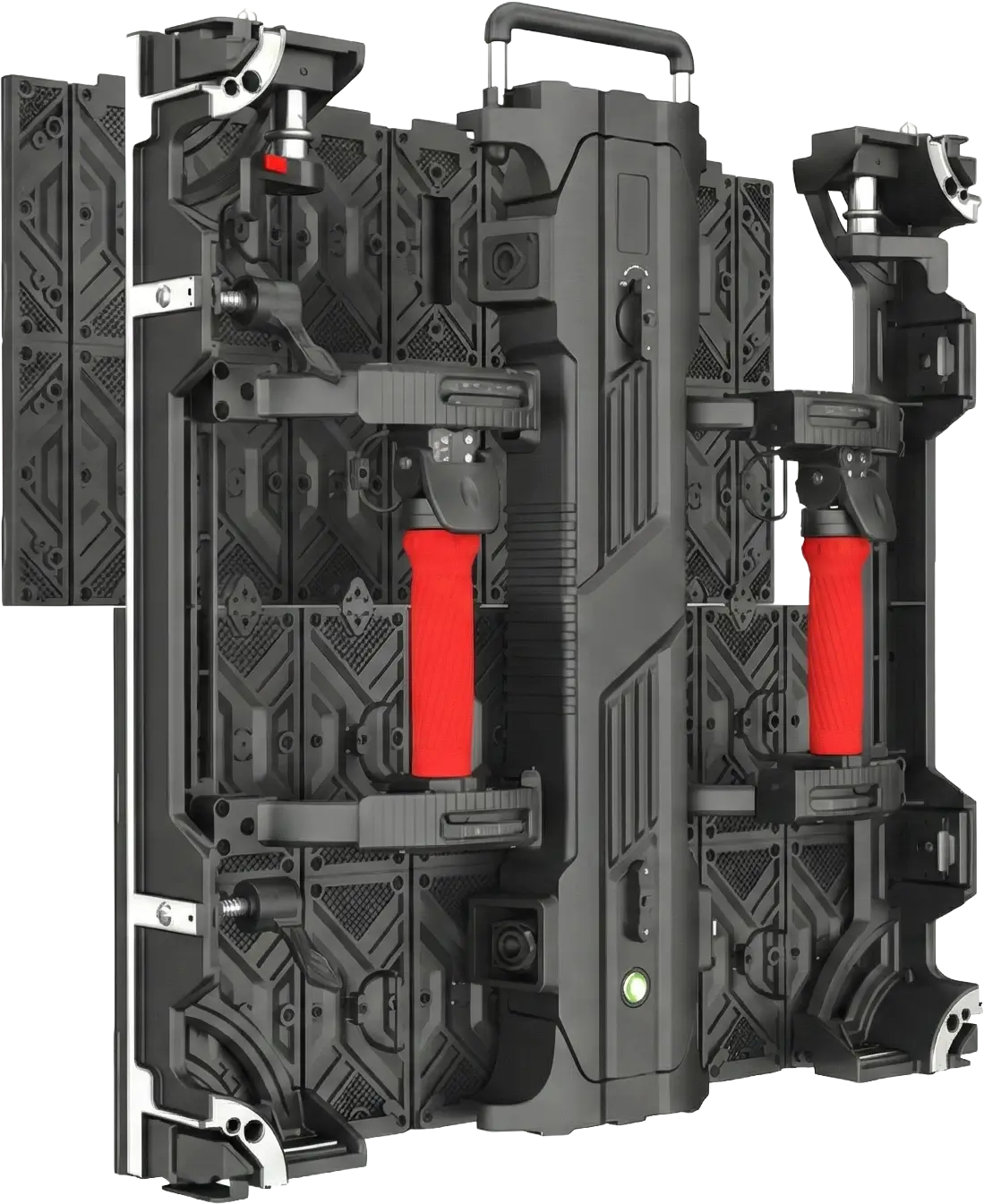

  • Smooth Curvature AdjustmentOptimized angle-lock switch & comfort-grip rotation mechanism.Designed to fit hand movements for quick, precise, and effortless angle adjustments.
  • Cylindrical ShapeSingle cabinet max. curved ±45°.

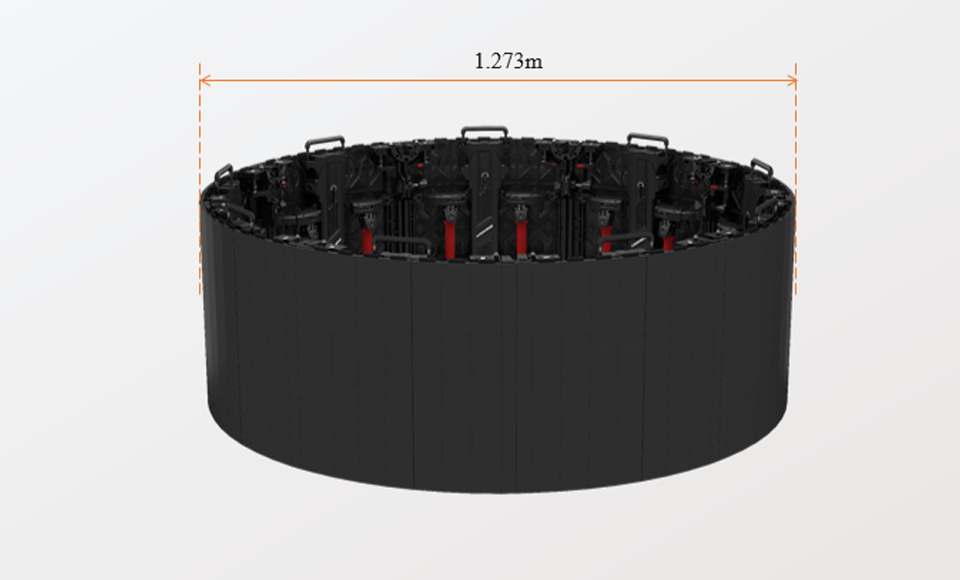

    Cylindrical Shape can be achieved by merely 8 cabinets, Minimum outside diameter is 1.273m.
  • Superior PerformanceStick the high quality standard for excellent display effect, stable performance, and maintain well image quality even during long hour operating.
View Specifications

Category:

CF Pro Series

Indoor Flexible LED Display
Pixel Pitch : 1.56/1.95/2.38/2.6/2.97/3.91mm
Viewing Angle: H:160°V:140°
Refresh Rate: 3840Hz/7680Hz
Protection Level: lP30

Specification

Panel Weight：8.5 KG ± 10%
Panel Dimension(W*H*D):500mm×500mm×108mm

Cylindrical Shape

Left and Right 0°～±22.5° each, Maximum curve ±45°

Maintenance

Module Maintenance: Remove the screws from the rear, and push the module forward

Features

Smooth Cylinder

Smooth Cylinder

Seamless Curves

Seamless Curves

High Stability

High Stability

Fast installation

Fast installation

Easy Maintenance

Easy Maintenance

Why Choose Westwood

Ultra HD Clarity

Crisp visuals with vibrant detail

Energy Efficient Design

Optimized performance with low power

Protection

Durable build for long-lasting safety

Smart Connectivity

Seamless control with modern linking

Eye Comfort Technology

Reduced strain for effortless viewing

Protection

Reliable shielding in all conditions

Technical Parameter

Model No. CFPro1.5（Indoor） CFPro1.9（Indoor） CFPro1.9(Indoor) CFPro1.9(Indoor) CFPro1.9(Indoor) CFPro2.38(Indoor) CFPro2.6(Indoor) CFPro2.9(Indoor) CFPro3.9(Indoor)
Pixel Pitch 1.56mm 1.9mm 1.9mm 1.9mm 1.9mm 2.38mm 2.6mm 2.9mm 3.9mm
LED Type SMD1212 SMD1212 SMD1515+HOB SMD1212 SMD1212 SMD1515 SMD1515 SMD2020 SMD2020
Packing process HOB 2 in 1 HOB S-SMT 4 in 1 / / / /
Pixel Density 409600 pixel/㎡ 262144 pixel/㎡ 262144 pixel/㎡ 262144 pixel/㎡ 262144 pixel/㎡ 173056 pixel/㎡ 147456 pixel/㎡ 112896 pixel/㎡ 65536 pixel/㎡
Panel Resolution 320*320 pixel 256*256 pixel 256*256 pixel 256*256 pixel 256*256 pixel 208*208 pixel 192*192 pixel 168*168 pixel 128*128 pixel
Scan Rate 1/32 1/32or1/16 1/32 1/32or1/16or1/8 1/32 1/15 1/24or1/16 1/21 1/16
Brightness 700-1000nits 800-1200nits 800-1200nits 800-1200nits 800-1200nits 800-1200nits 800-1200nits 800-1200nits 800-1200nits
Color Temperature 6500-9500K
Panel Dimension 500mm*500mm*108mm
Panel Weight 8.5kg±10%
Panel Material Die-Casting Cabinet
Max. Power Consumption ≦540w/㎡
Ave. Power Consumption ≦270w/㎡
Viewing Angle H:160°V:140°
Refresh Rate 3840Hz/7680Hz
Gray Scale 14-16bit
Working Voltage AC100-240V~50/60Hz or AC200-240V~50/60Hz
IP Rating IP30
Curve -45°/-42.5°/- 40°/ -37.5°/ -35°/ -32.5°/- 30°/- 27.5°/-25°/-22.5⁰/-20⁰/-17.5⁰/-15⁰/-12.5⁰/-10⁰/-7.5⁰/-5⁰/-2.5⁰/ 0⁰/2.5⁰/5.0⁰/7.5⁰/10⁰/12.5⁰/15⁰/17.5⁰/20⁰/22.5⁰/ 25°/27.5° /30°/ 32.5°/ 35°/ 37.5°/ 40°/ 42.5°/ 45°
Max. Stacking/Hanging Height 5m
Lifetime 50000h
Operating Temp/Humidity -20℃~+45℃；10%~60%RH
Storage Temp/Humidity -40℃~+60℃；10%~60%RH
